Atlas Lifting and Rigging Lever Hoist 9T 15' Chain with Overload Protection

Description

Atlas Lifting and Rigging Lever Hoist 9T 15' Chain with Overload Protection

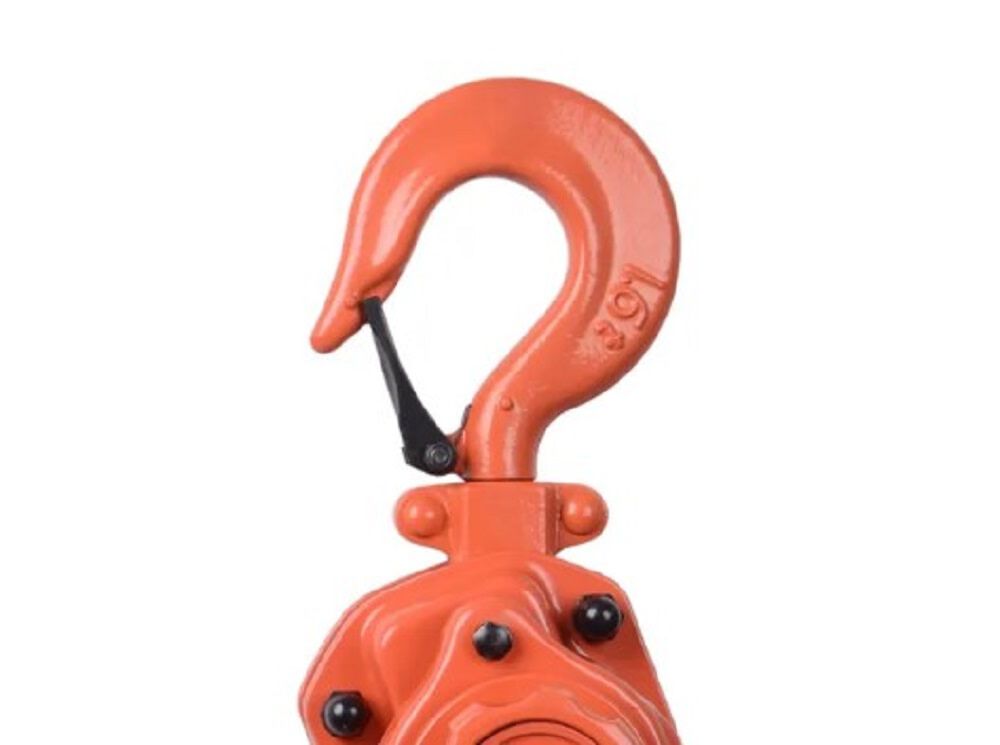

Atlas Lifting & Rigging (ALR) has designed these hoists to exceed it's rating by 150%. The safety features are: At the base and tip of each hook are permanent measuring points to check the hooks throat opening for signs of "stretching", an indication that the hoist has been overloaded and the hook should be replaced. The zinc coating on crucial parts gives it the ability to withstand harsh conditions. Quick hoist positioning allows our lever hoist to adjust without accidentally freewheeling under load. Our hoist does not have to be under load to adjust with the ratchet. Welded structural stay bolts increases strength and safety. High strength alloy side plates gives it the strongest structure in the industry. Sintered brake system gives our brake pads extraordinary strength, it won't crack, shatter or absorb moisture. Overload protection will protect the user and the hoist from damage.

Features

Zinc-coated for harsh conditions/Blue Grease for high performance
Quick-adjust free spool feature
Welded structural stay bolts
All-steel construction
Sintered brake system
Upgraded high-strength side plates
Every ALR hoist meets or exceeds OSHA & ANSI/ASME HST-3 standards
Atlas Lifting & Rigging Lever Hoist 9T-15' Chain with Overload Protection
Overload Protection

Specifications

A-Frame Design
No
Brand Name
Atlas Lifting and Rigging
Assembled Depth (in)
14
Assembled Weight (lbs)
152.9
Assembled Width (in)
8.5
ASTM B30.21 Compliant
Yes
Capacity
19800 lbs
Color
Orange
Country of Origin
China
Height (in)
21.5
MFG Part # (OEM)
ALH-090-15-OP
Material
Steel
Maximum Load (lbs)
19800
Overall Length (in)
180
Package Contents
Hoist
Package Depth
14.96136
Package Height
9.05556
Package Weight
152.9
Product Condition
New
Towable
No
UPC
810044341720
Warranty Type
3 Years Limited
Weight Capacity (lbs)
19800
