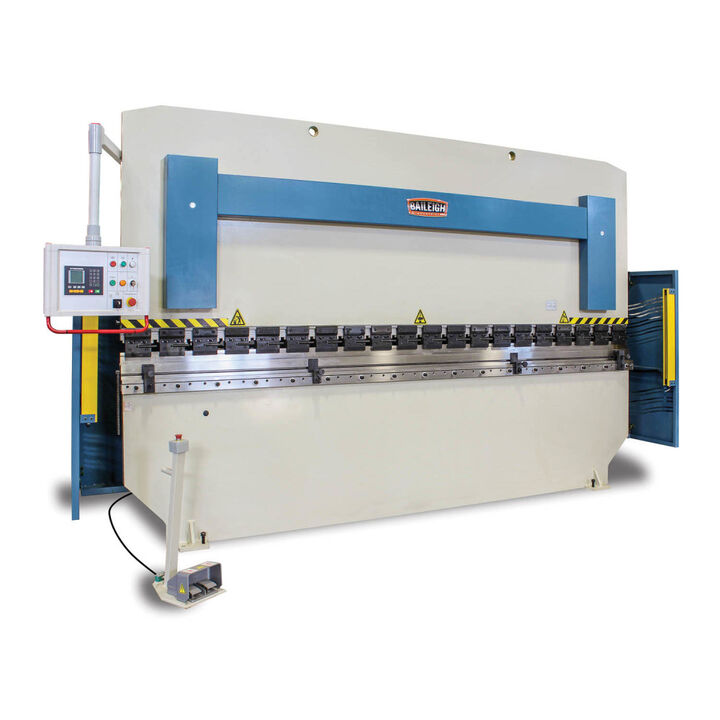

Baileigh BP-17913CNC Hydraulic Press Brake 157in 179 Ton
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Delivers 179 tons of pressure, Offers 13 Ft. length (157 In.) and 123 In. of distance between the housings, Runs on 220V 3 Phase power
Industrial-grade hydraulic system with Vickers/Eaton® and Nachi® components will last for many years at peak capacity
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
Hydraulic cylinders are near the back of the machine for convenient fluid changes
Runs in single-bend mode or programmable mode
Comes standard with 2 axes of control - stroke and back gauge distance, Controller is so simple that you could train someone to use it in 5 minutes
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
Bending is accurate to +/- 0.01 mm, ensuring that parts come out right the first time
1-year parts warranty, as well as lifetime technical support by phone
-
In Stock (Ships in 3-5 business days)
$88,43900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 7 - Fri Nov 8
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
Baileigh BP-17913CNC Hydraulic Press Brake 157in 179 Ton
$88,43900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay over time with Affirm on orders below $17,500
Product Details
Baileigh BP-17913CNC Hydraulic Press Brake 157in 179 Ton
Baileigh
Description
Baileigh BP-17913CNC Hydraulic Press Brake 157in 179 Ton
This large press brake lets you slide 10 Ft. sheets between the housings. A rigid steel frame and hydraulic parts by Nachi® and Vickers/Eaton® keep the machine running reliably.
Features
Delivers 179 tons of pressure, Offers 13 Ft. length (157 In.) and 123 In. of distance between the housings, Runs on 220V 3 Phase power
Industrial-grade hydraulic system with Vickers/Eaton® and Nachi® components will last for many years at peak capacity
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
Hydraulic cylinders are near the back of the machine for convenient fluid changes
Runs in single-bend mode or programmable mode
Comes standard with 2 axes of control - stroke and back gauge distance, Controller is so simple that you could train someone to use it in 5 minutes
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
Bending is accurate to +/- 0.01 mm, ensuring that parts come out right the first time
1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name
Baileigh
Assembled Weight (lbs)
24640
Country of Origin
Taiwan
MFG Part # (OEM)
1000789
Material
Steel
Package Contents
179 Ton Hydraulic Press Brake
Package Depth
166
Package Height
103
Package Weight
24640
Product Condition
New
UPC
731325394351
Warranty Type
1 Year
