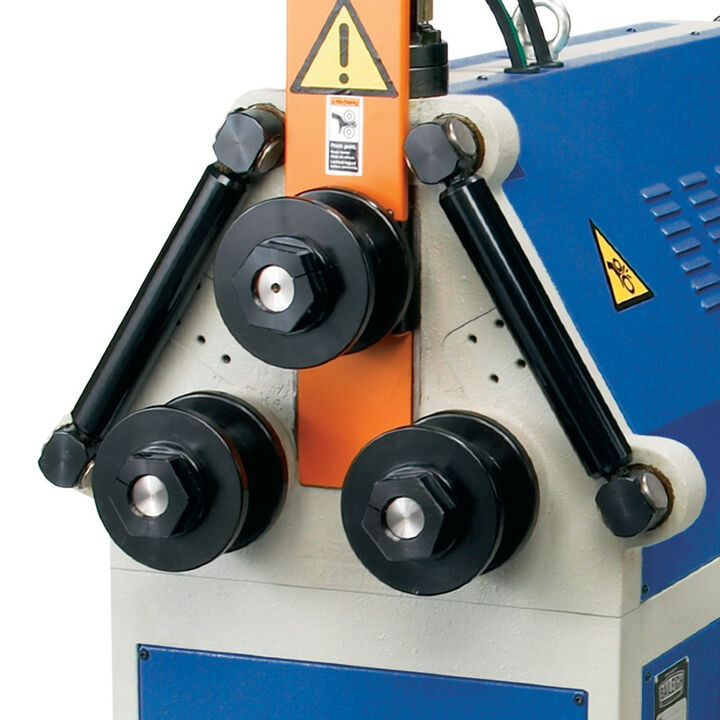

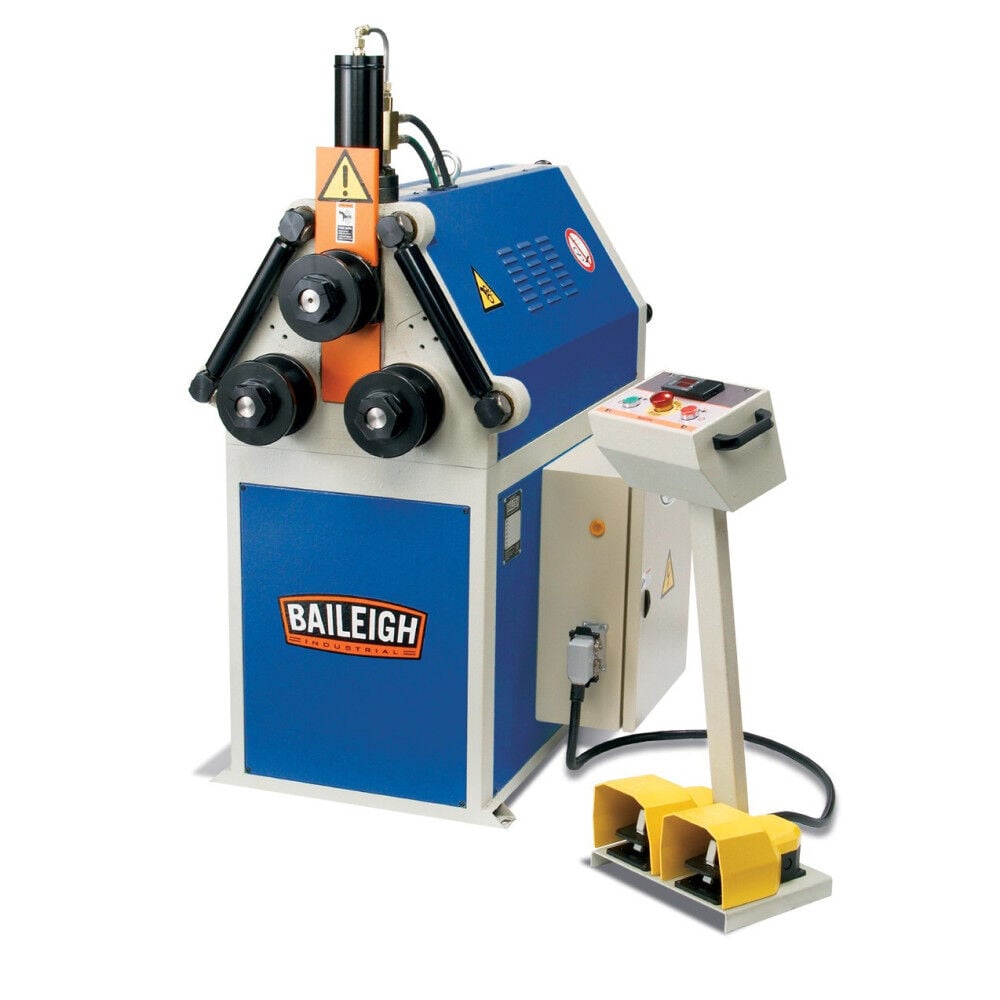

Baileigh R-H45 Hydraulic Angle Ring Roll Bender Machine
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Runs on 220V 1 Phase power and will work at just about any fabrication shop or job site
Bends up to 2 In square x 0.12 In. wall tubing and 2 In. schedule 40 pipe, among other materials
All 3 rolls turn on industrial motor and transmission
Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment
Digital readout with programmable stop controls upward and downward roll position for easy repeatability
Siemens inverter drive enables soft start-ups to prolong motor life
Operator podium includes foot pedal, allowing you to stop and start the machine with ease
You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters
Fully-welded steel plate frame adds strength to the machine and minimizes flex
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$14,85900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
Baileigh R-H45 Hydraulic Angle Ring Roll Bender Machine
$14,85900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Baileigh R-H45 Hydraulic Angle Ring Roll Bender Machine
Baileigh
Description
Baileigh R-H45 Hydraulic Angle Ring Roll Bender Machine
The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.
Features
Runs on 220V 1 Phase power and will work at just about any fabrication shop or job site
Bends up to 2 In square x 0.12 In. wall tubing and 2 In. schedule 40 pipe, among other materials
All 3 rolls turn on industrial motor and transmission
Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment
Digital readout with programmable stop controls upward and downward roll position for easy repeatability
Siemens inverter drive enables soft start-ups to prolong motor life
Operator podium includes foot pedal, allowing you to stop and start the machine with ease
You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters
Fully-welded steel plate frame adds strength to the machine and minimizes flex
Specifications
Brand Name
Baileigh
Application
For Bends up to 2 In. Square x 0.12 In. Wall Tubing and 2 In. Schedule 40 Pipes
Assembled Weight (lbs)
1000
Country of Origin
China
MFG Part # (OEM)
1006835
Material
Welded Steel Frame
Package Contents
Roll Bender Machine,3 Rollers
Package Depth
77
Package Height
60
Package Weight
1000
Product Condition
New
UPC
019907415725
Warranty Type
1 Year
