Coxreels 12V DC 1/2HP Motorized Hose Reel 2in x 90' 1000PSI No Hose
$1,89799
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Product Details

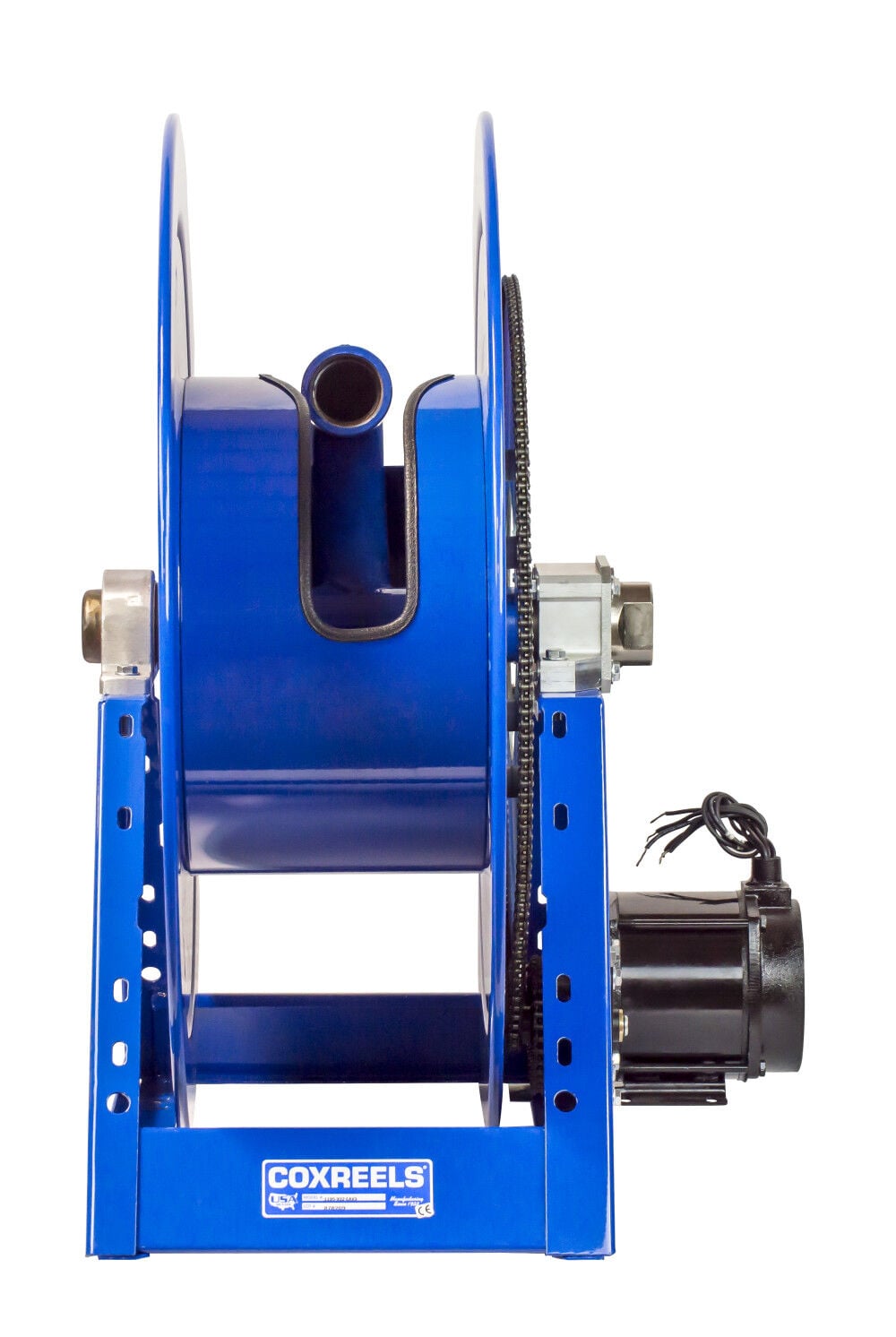

Coxreels 12V DC 1/2HP Motorized Hose Reel 2in x 90' 1000PSI No Hose
Description
Coxreels 12V DC 1/2HP Motorized Hose Reel 2in x 90' 1000PSI No Hose
Coxreels 1195-2428-EDV3 Electric DC Non-Explosion Proof Motor Rewind Hose Reel: 2" I.D., 90' hose capacity, 1:3 ratio idler gear, less hose, 1000 PSI
Features
SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and electrical 12V DC, 1/2 HP explosion proof reversable motor.
1196 Series
Coxreels 1195-2428-EDV3 12V DC 1/2HP Motorized Hose Reel 2inx90ft 1000PSI no hose
Specifications
Brand Name
Coxreels
Assembled Depth (in)
28
Assembled Weight (lbs)
182
Assembled Width (in)
37.25
Color
Blue
Country of Origin
United States
EAN (European Article Number)
0674255861121
Height (in)
30.25
MFG Part # (OEM)
1195-2428-EDV3
Maximum Pressure Rating (psi)
1500
Package Contents
Motorized reel, no hose, electric motor
Package Depth
44
Package Height
34
Package Weight
182
Product Condition
New
Reel Drive / Return Type
Motor Driven Return
UPC
674255861121
Warranty Type
2 Years Limited
