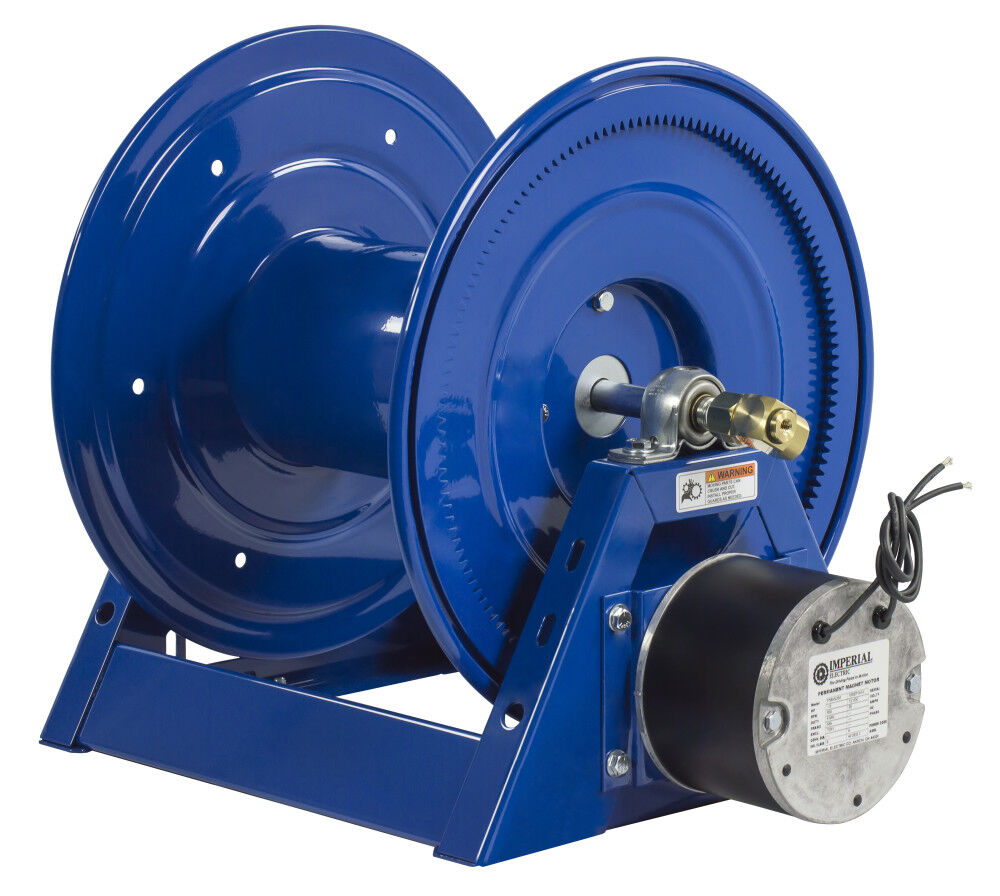

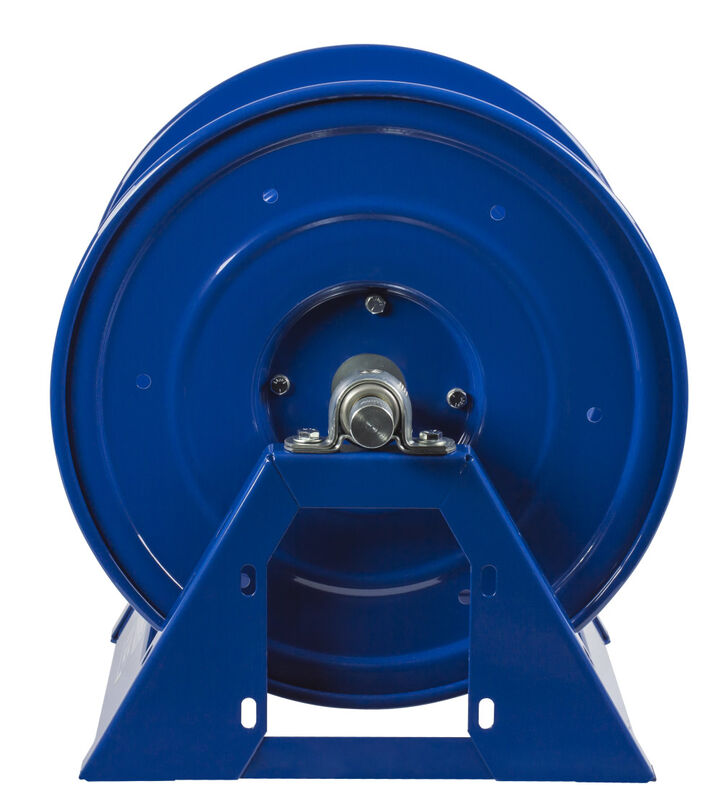

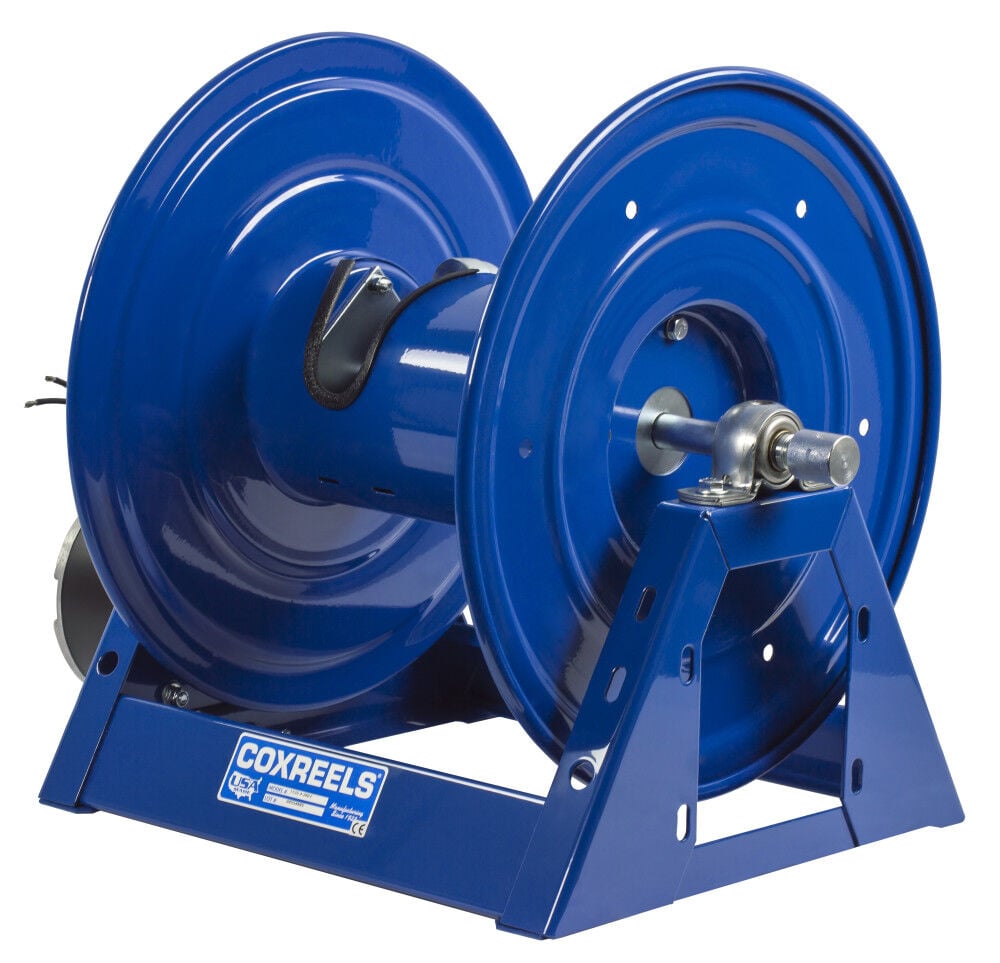

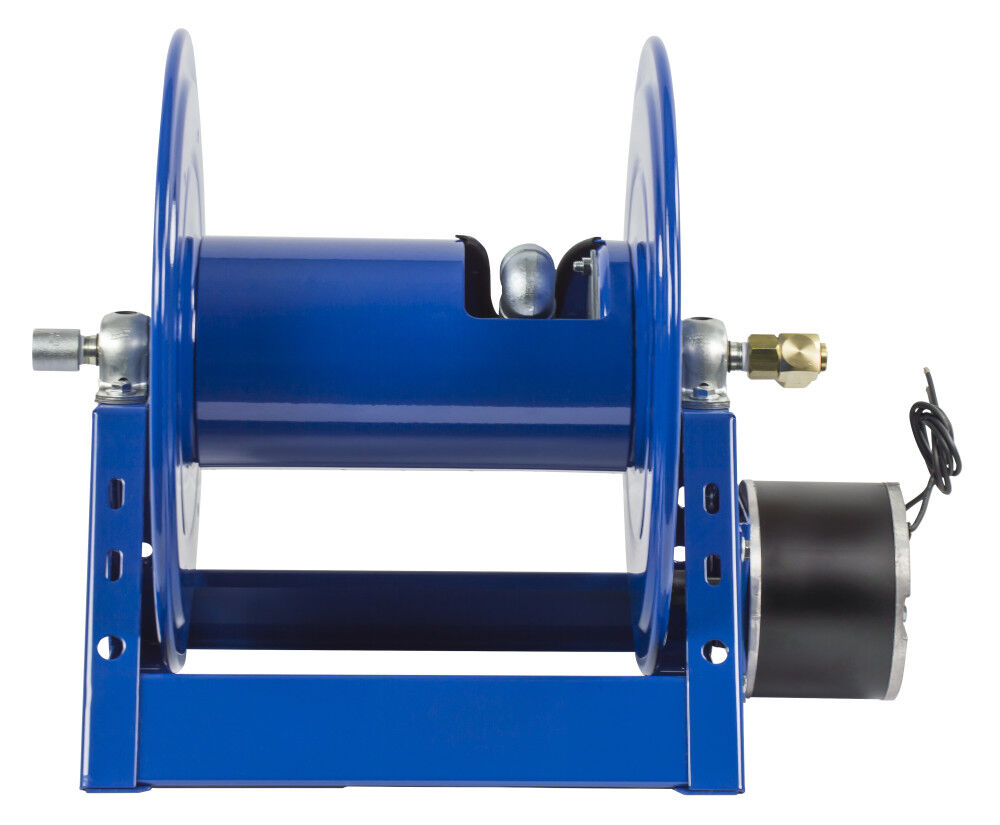

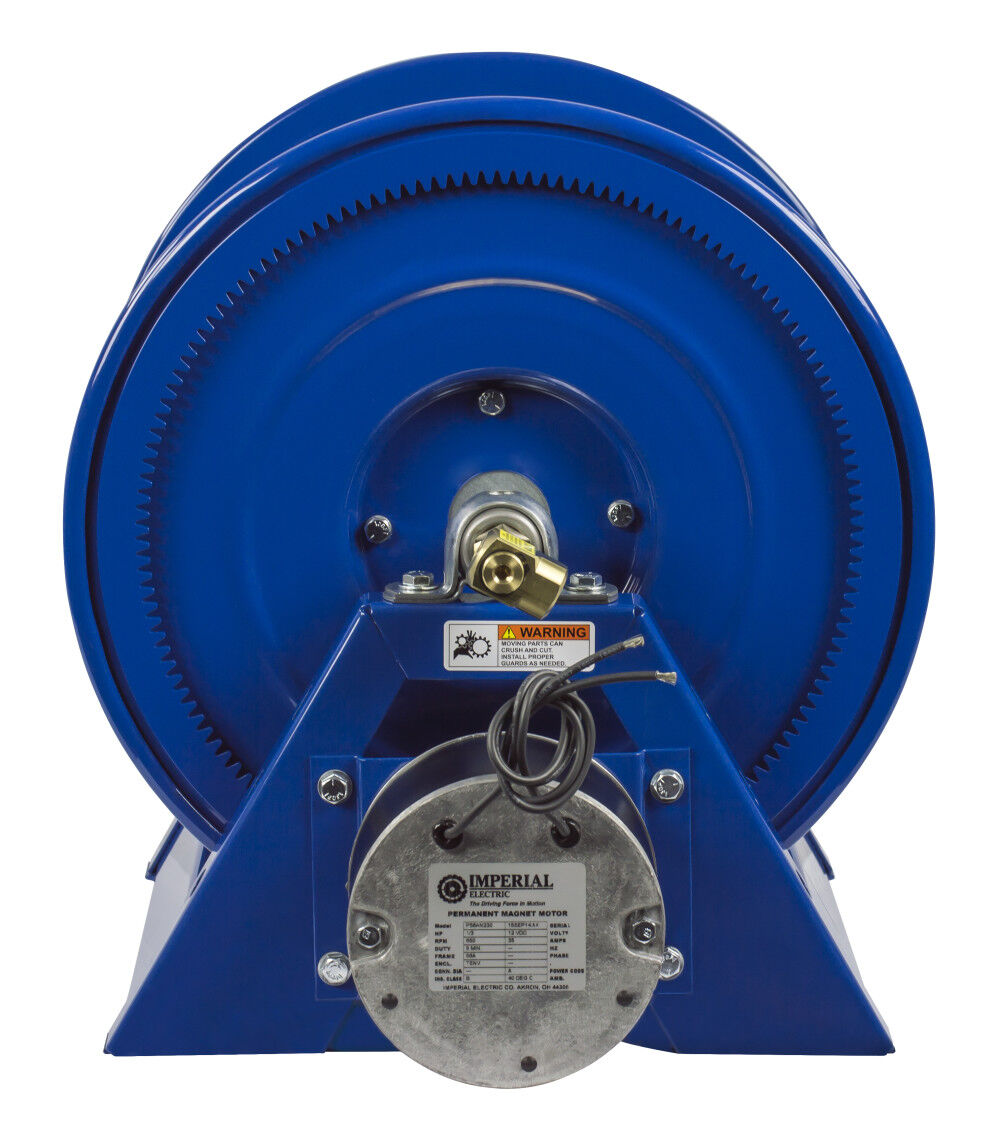

Coxreels 24V DC 1/3HP Motorized Hose Reel 3/4in x 200' No Hose
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and electrical 24V DC, 1/3 HP reversable motor
1125 Series
Coxreels 1125-5-200-EF 24V DC 1/3HP Motorized Hose Reel 3/4inx200ft no hose
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$86499
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
Coxreels 24V DC 1/3HP Motorized Hose Reel 3/4in x 200' No Hose
$86499
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Coxreels 24V DC 1/3HP Motorized Hose Reel 3/4in x 200' No Hose
Coxreels
Description
Coxreels 24V DC 1/3HP Motorized Hose Reel 3/4in x 200' No Hose
Coxreels 1125-5-200-EF Electric 24V DC 1/3HP Motor Rewind Hose Reel: 3/4" I.D., 200' hose capacity, less hose, 3000 PSI
Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and electrical 24V DC, 1/3 HP reversable motor
1125 Series
Coxreels 1125-5-200-EF 24V DC 1/3HP Motorized Hose Reel 3/4inx200ft no hose
Specifications
Brand Name
Coxreels
Assembled Depth (in)
17.625
Assembled Weight (lbs)
68
Assembled Width (in)
38
Color
Blue
Country of Origin
United States
EAN (European Article Number)
0674255866195
Height (in)
19.25
MFG Part # (OEM)
1125-5-200-EF
Maximum Pressure Rating (psi)
3000
Package Contents
Motorized reel, no hose, electric motor
Package Depth
41
Package Height
21
Package Weight
68
Product Condition
New
Reel Drive / Return Type
Motor Driven Return
UPC
674255866195
Warranty Type
2 Years Limited
