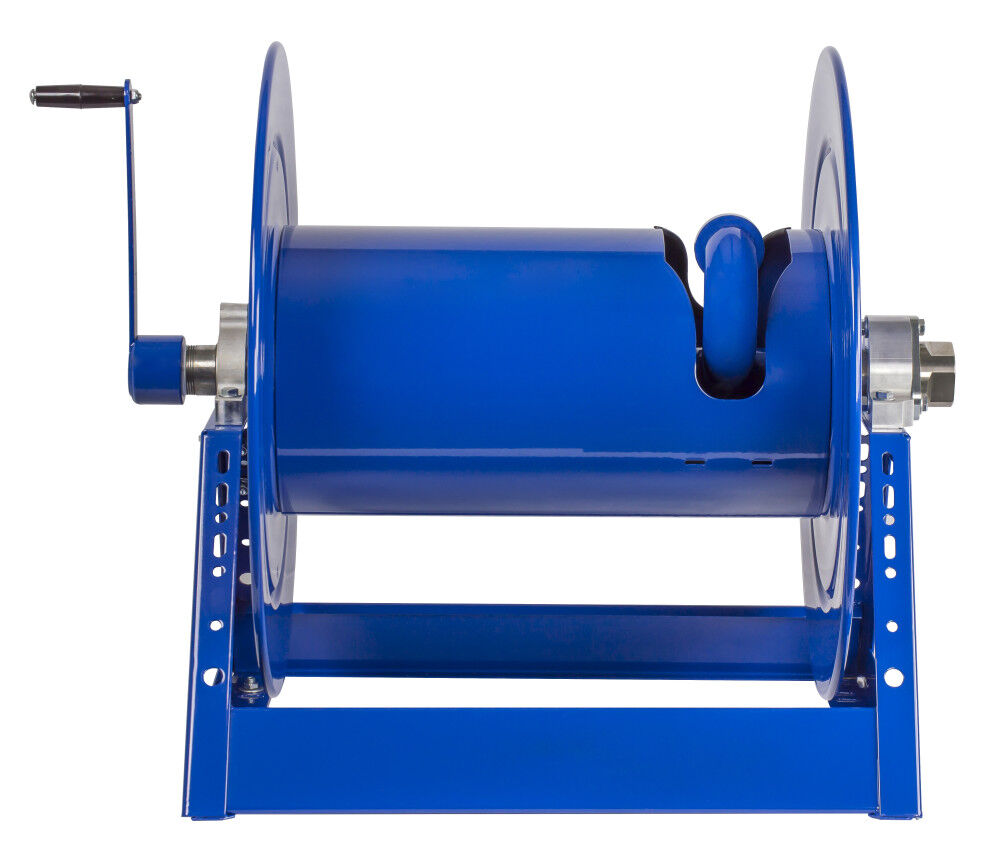

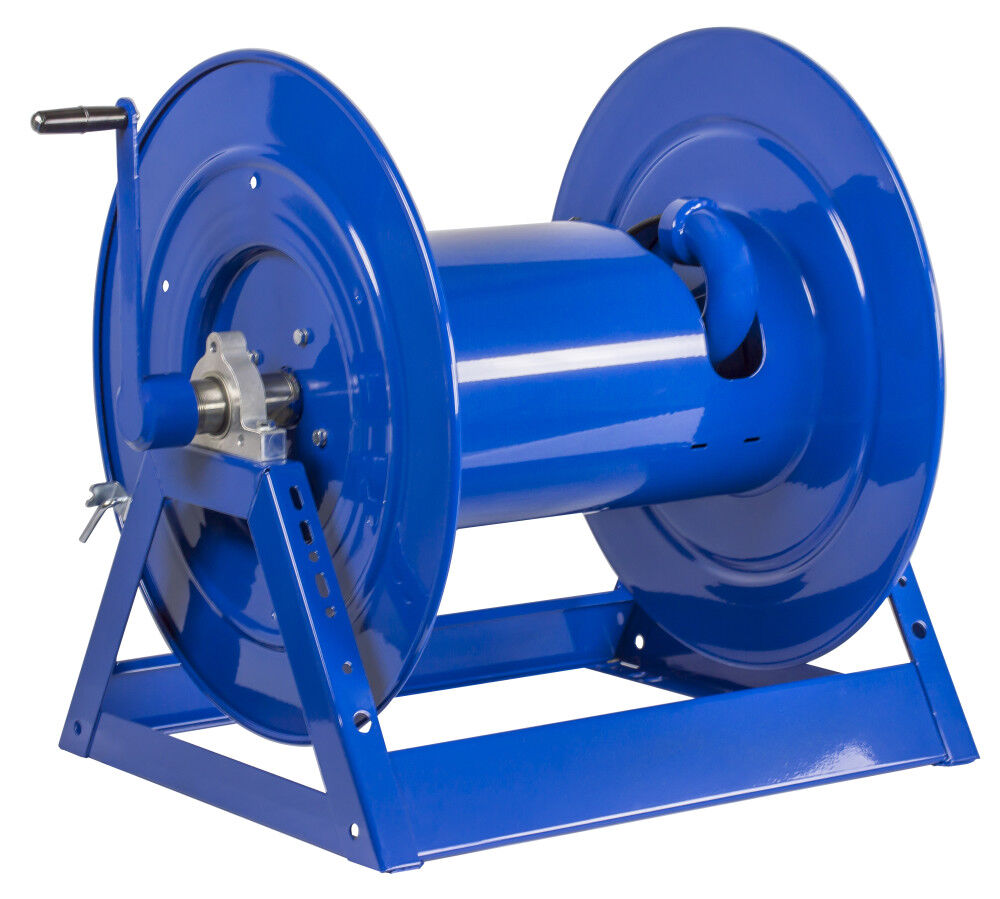

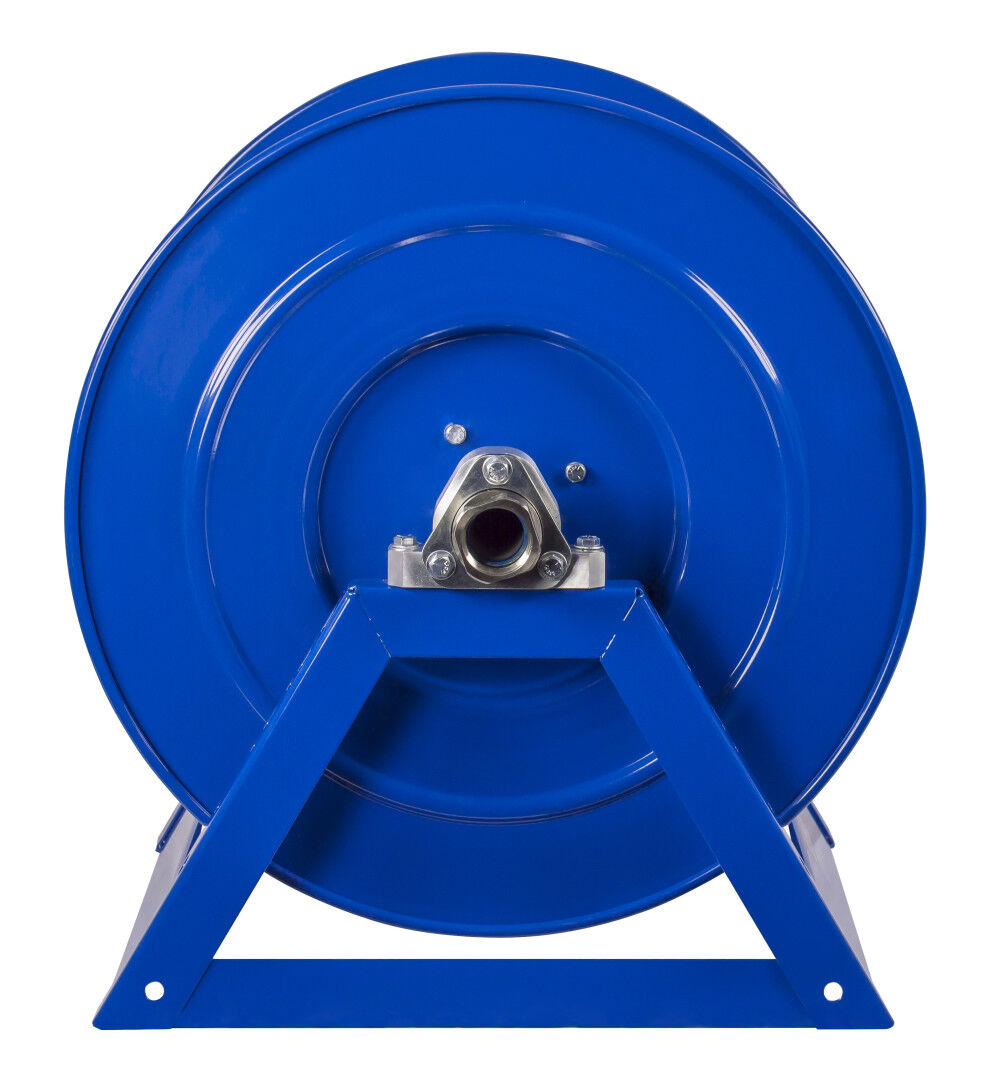

Coxreels Hand Crank Hose Reel 1-1/2in x 100' 1500PSI No Hose
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and direct hand crank for easy mechanical retraction.
1185 Series
Coxreels 1185-2024 Hand Crank Hose Reel 1-1/2inx100ft 1500PSI no hose
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$72499
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
Coxreels Hand Crank Hose Reel 1-1/2in x 100' 1500PSI No Hose
$72499
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Coxreels Hand Crank Hose Reel 1-1/2in x 100' 1500PSI No Hose
Coxreels
Description
Coxreels Hand Crank Hose Reel 1-1/2in x 100' 1500PSI No Hose
Coxreels 1185-2024 Hand Crank Hose Reel: 1 1/2" I.D., 100' hose capacity, less hose, 1500 PSI
Features
SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and direct hand crank for easy mechanical retraction.
1185 Series
Coxreels 1185-2024 Hand Crank Hose Reel 1-1/2inx100ft 1500PSI no hose
Specifications
Brand Name
Coxreels
Assembled Depth (in)
24
Assembled Weight (lbs)
94
Assembled Width (in)
33.5
Color
Blue
Country of Origin
United States
EAN (European Article Number)
0674255833579
Height (in)
26
MFG Part # (OEM)
1185-2024
Maximum Pressure Rating (psi)
3000
Package Contents
Hand crank hose reel, no hose
Package Depth
29.5
Package Height
26.5
Package Weight
94
Product Condition
New
Reel Drive / Return Type
Manual Return
UPC
674255833579
Warranty Type
2 Years Limited
