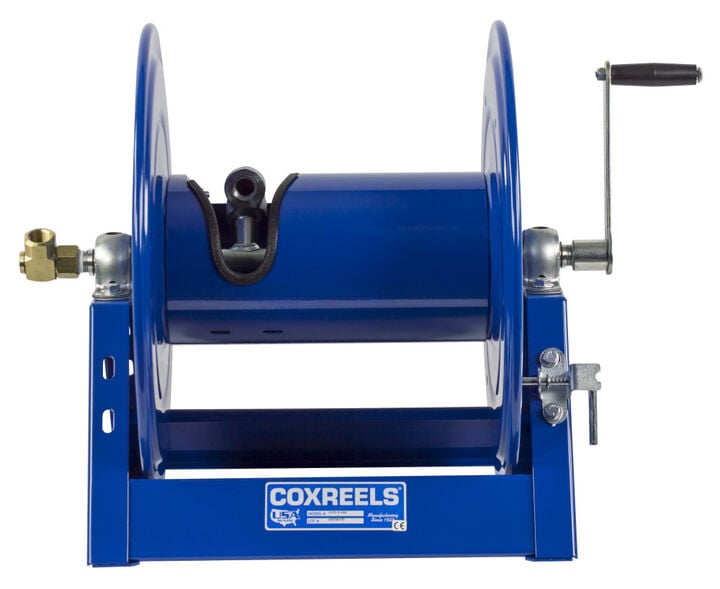

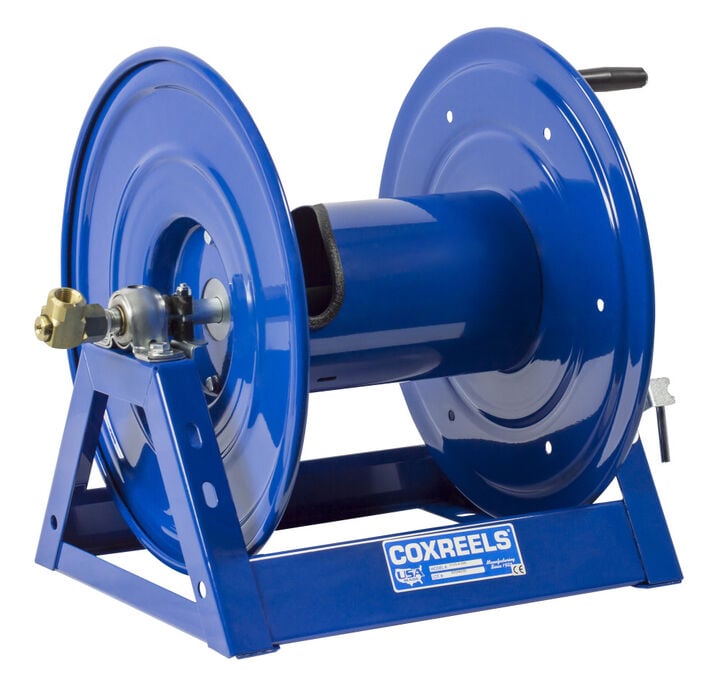

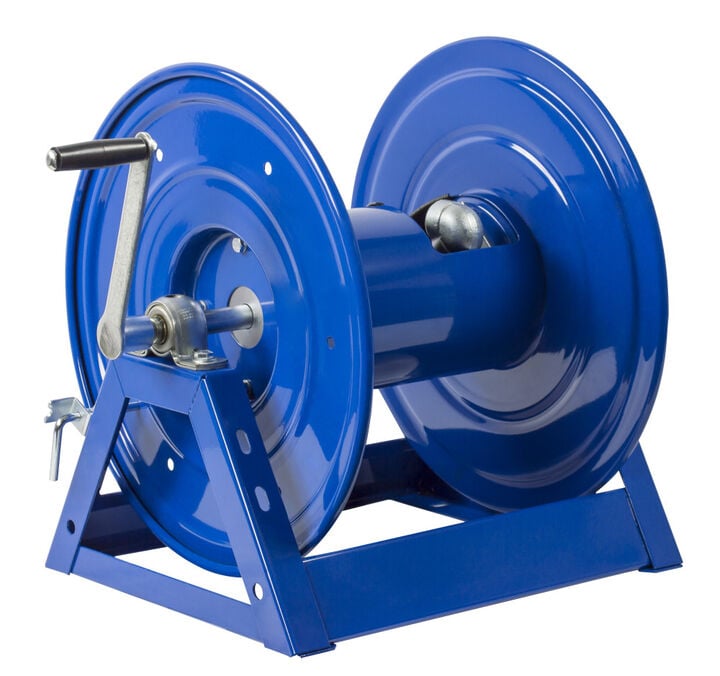

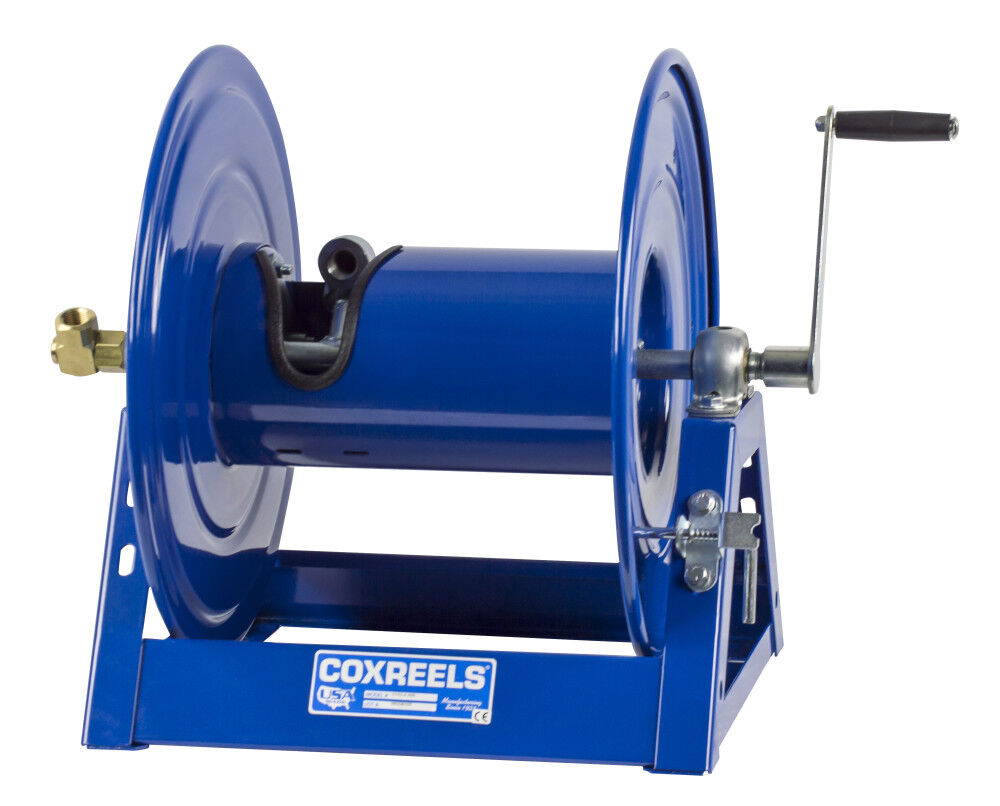

Coxreels Hand Crank Hose Reel 3/4in x 100' 3000PSI EPR Seals
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. EPR Seals
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
1125 Series
Coxreels 1125-5-100-BEXX Hand Crank Hose Reel 3/4inx100ft 3000PSI - EPR Seals
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$36999
Out of Stock
+
$50
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Fri Nov 15 - Fri Nov 22
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
Coxreels Hand Crank Hose Reel 3/4in x 100' 3000PSI EPR Seals
$36999
Out of Stock
+
$50
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Coxreels Hand Crank Hose Reel 3/4in x 100' 3000PSI EPR Seals
Coxreels
Description
Coxreels Hand Crank Hose Reel 3/4in x 100' 3000PSI EPR Seals
Coxreels 1125-5-100-BEXX Hand Crank Hose Reel: 3/4" I.D., 100' hose capacity, less hose, 3000 PSI, EPR Seals
Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. EPR Seals
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
1125 Series
Coxreels 1125-5-100-BEXX Hand Crank Hose Reel 3/4inx100ft 3000PSI - EPR Seals
Specifications
Brand Name
Coxreels
Assembled Depth (in)
17.63
Assembled Weight (lbs)
42
Assembled Width (in)
26.75
Color
Blue
Country of Origin
United States
EAN (European Article Number)
0674255829183
Height (in)
18.75
MFG Part # (OEM)
1125-5-100-BEXX
Maximum Pressure Rating (psi)
3000
Package Contents
Hand crank reel, no hose
Package Depth
25.5
Package Height
20
Package Weight
42
Product Condition
New
Reel Drive / Return Type
Manual Return
UPC
674255829183
Warranty Type
2 Years Limited
