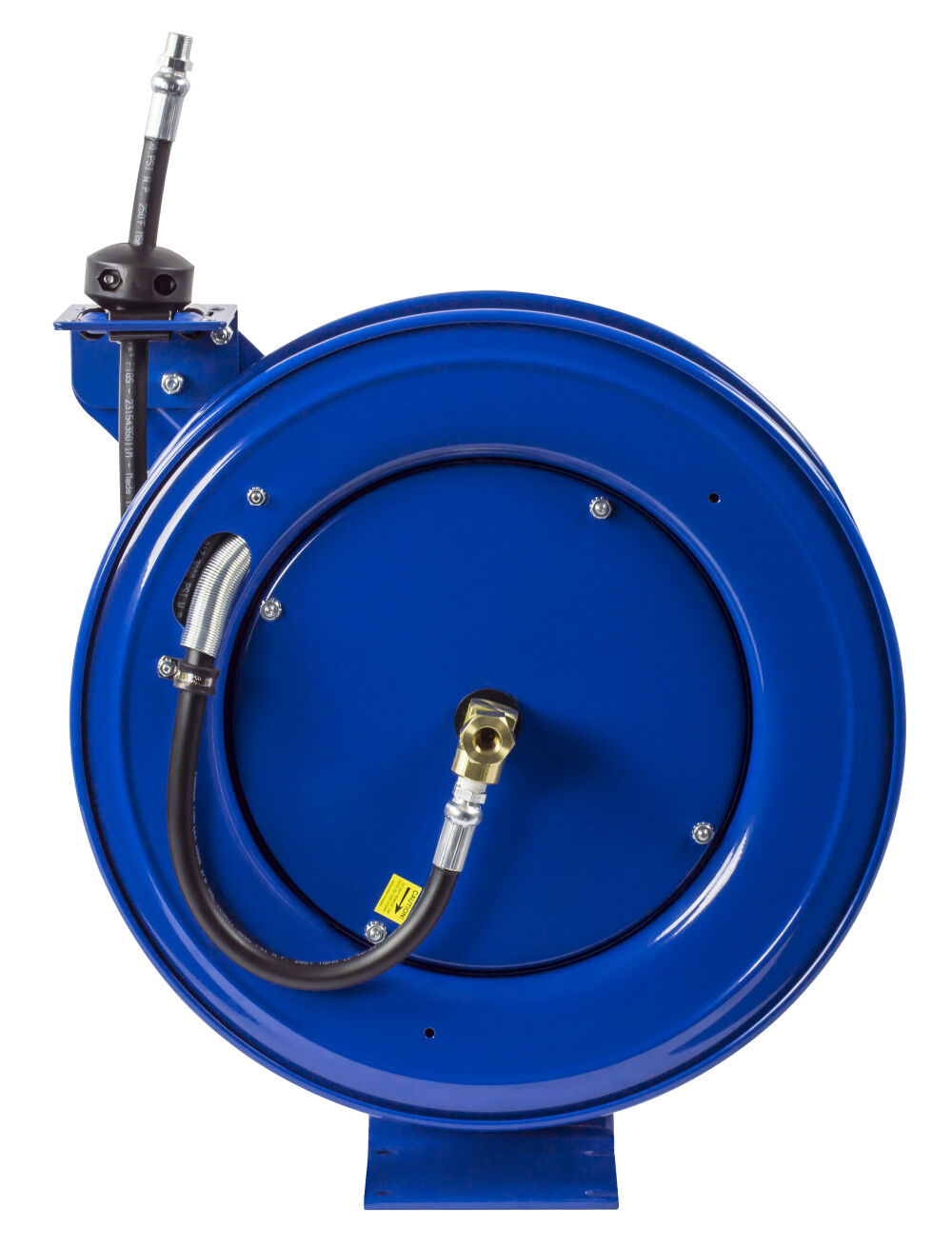

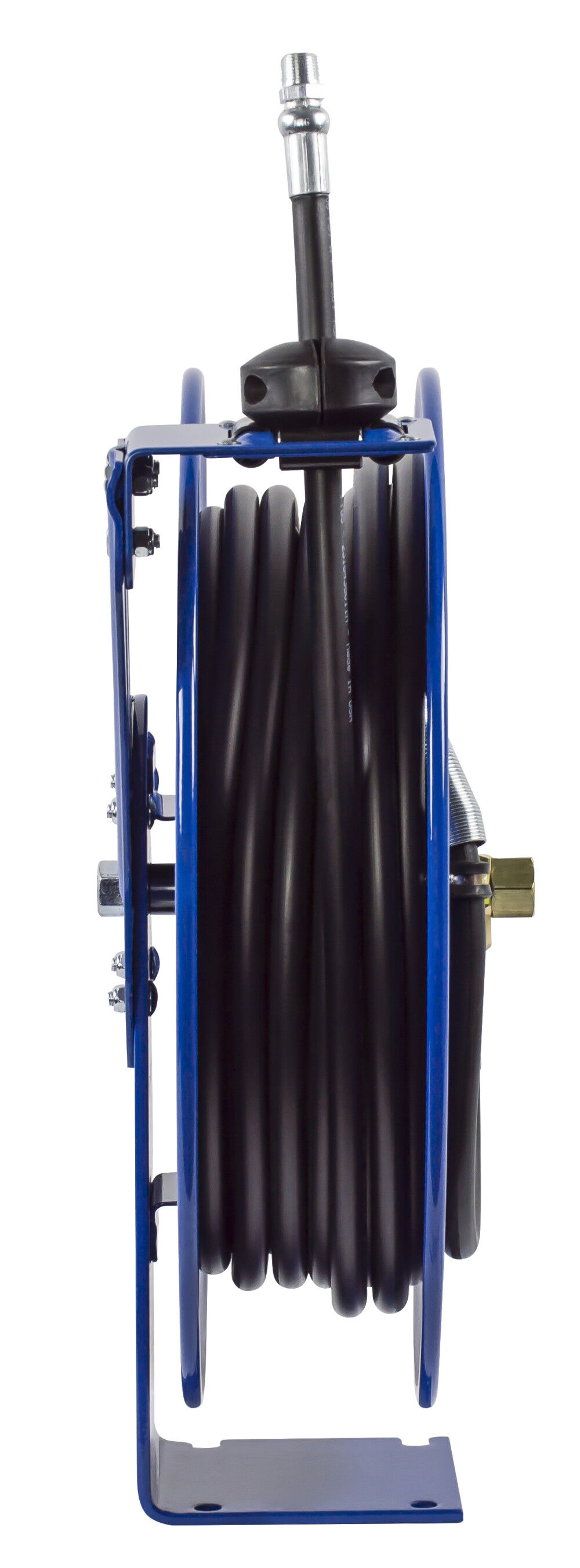

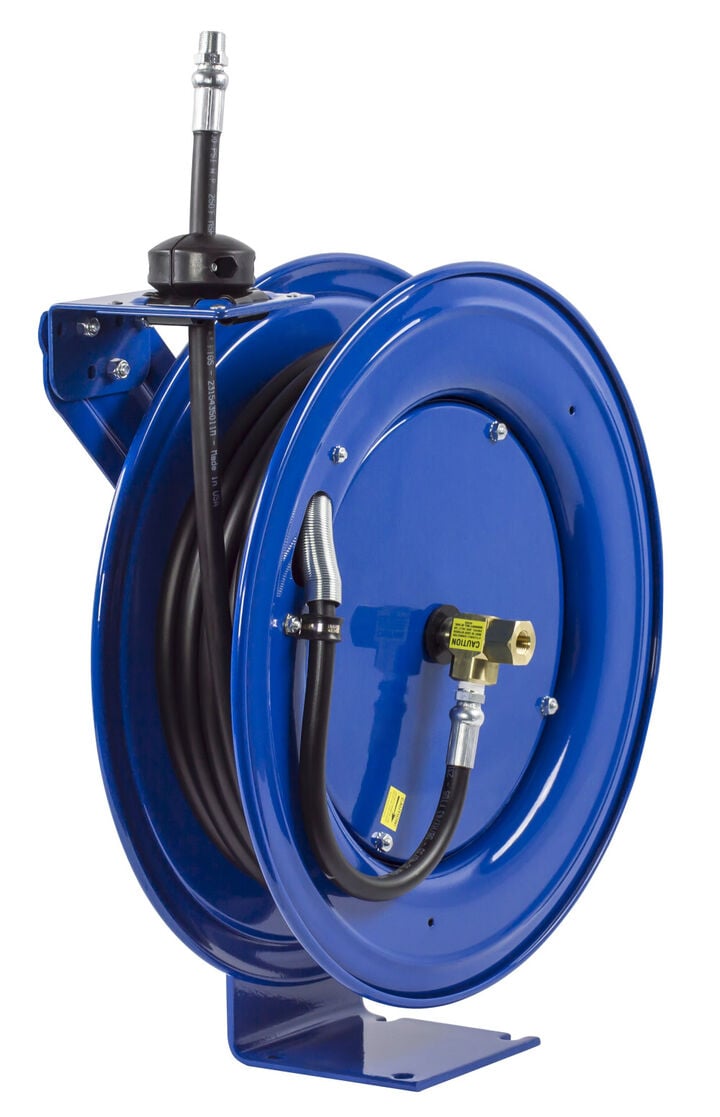

Coxreels Heavy Duty Spring Driven Hose Reel 3/4in x 35' 1500PSI
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight. Exclusive Super Hub™dual axle support system.
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
MP Series
Coxreels MP-N-535 Heavy Duty Spring Driven Hose Reel 3/4inx35ft 1500PSI
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$78899
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
Coxreels Heavy Duty Spring Driven Hose Reel 3/4in x 35' 1500PSI
$78899
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Coxreels Heavy Duty Spring Driven Hose Reel 3/4in x 35' 1500PSI
Coxreels
Description
Coxreels Heavy Duty Spring Driven Hose Reel 3/4in x 35' 1500PSI
Coxreels MP-N-535 Heavy Duty Spring Rewind Hose Reel for air/water/oil: 3/4" I.D., 35' hose, 1500 PSI
Features
SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight. Exclusive Super Hub™dual axle support system.
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
MP Series
Coxreels MP-N-535 Heavy Duty Spring Driven Hose Reel 3/4inx35ft 1500PSI
Specifications
Brand Name
Coxreels
Assembled Depth (in)
19.5
Assembled Weight (lbs)
68
Assembled Width (in)
9.375
Color
Blue
Country of Origin
United States
EAN (European Article Number)
0674255726628
Height (in)
25.5
MFG Part # (OEM)
MP-N-535
Maximum Pressure Rating (psi)
1500
Package Contents
Spring driven reel, rubber hose, hose stop
Package Depth
20.5
Package Height
22
Package Weight
68
Product Condition
New
Reel Drive / Return Type
Spring Loaded Return
UPC
674255726628
Warranty Type
2 Years Limited
