JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer

Item No. SKU# 323376
4.9 out of 5 Customer Rating
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 0
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 1
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 2
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 3
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 4
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, large image number 5
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer, small
Youtube Video
  • In Stock (Ships in 3-5 business days)
$22,59900
Out of Stock
+ $100 GIFT CARD w/ code at checkout
Delivery to -
43215
- Est. Arrival Thu Nov 7 - Fri Nov 8 Edit location
Pick Up at
Store Address -
Ready to pick up within 4 hours
Contact Store:
Made In USA
  No Air Shipments
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer
$22,59900
Out of Stock
+ $100 GIFT CARD w/ code at checkout
Qty
Secure Checkout
Affirm Pay over time with Affirm on orders below $17,500
Product Details

JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer

JET JET

Description

JET 14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer

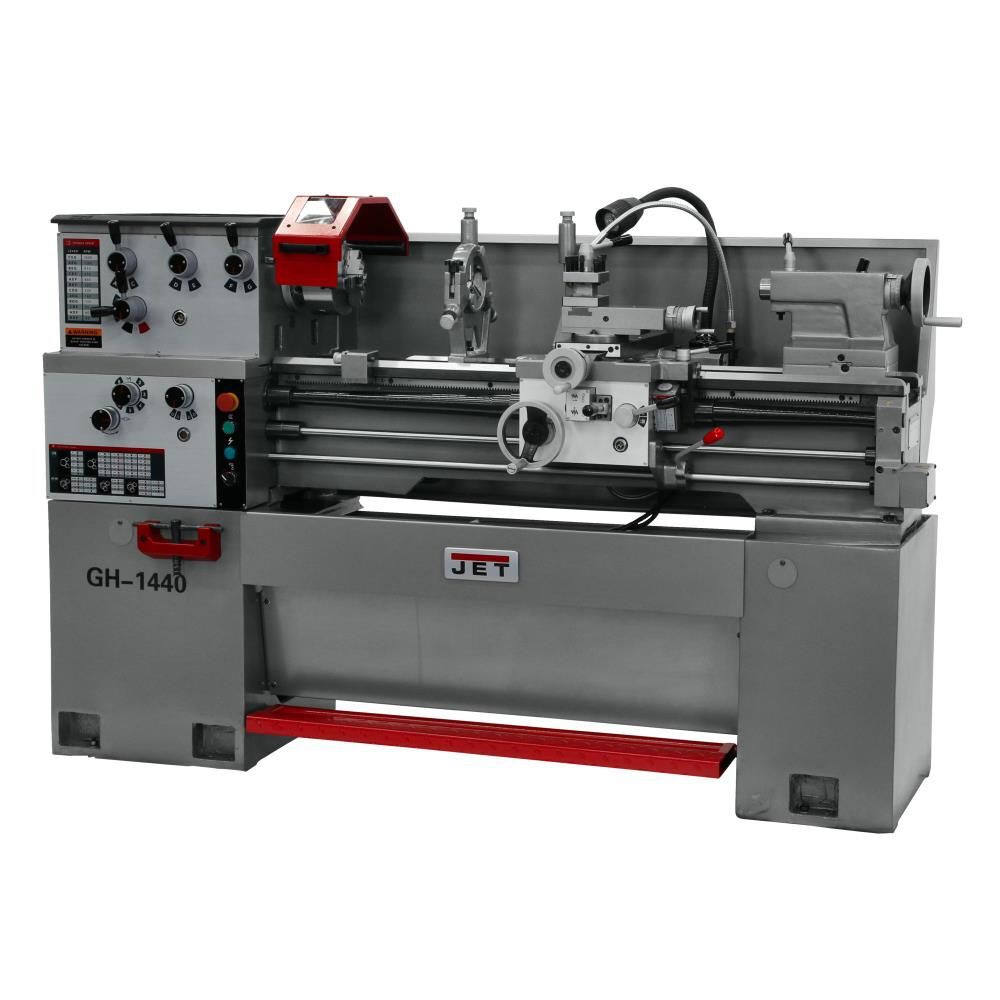

The new Jet GH-1440-1 and GH-1440-3 geared head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

California Proposition 65 Warning.
View Warning Label

Features

V-way bed design is induction hardened and ground
Splined, not keyed, shafts are utilized
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Independent lead screw and feed rod
Adjustable gibs are incorporated in the carriage and slide ways
Safety on/off switch
Emergency stop within easy reach of the operator
14 x 40 Gear Head Single Phase Lathe with ACU-RITE 203 DRO and Collet Closer
Chuck guard
Foot Brake

Specifications

Brand Name
JET
Assembled Weight (lbs)
2336.0
California Proposition 65 Warning Required
Yes
Center To Center (in)
40.0
Color
Gray
Country of Origin
China
Digital / Analog
Digital
ETL Listed
No
Height (in)
46.0
Horsepower (hp)
3.0
MFG Part # (OEM)
323376
Maximum Speed (rpm)
1720.0
Net Tool Weight (lbs)
2336.0
Package Contents
14 x 40 Lathe with ACU-RITE 203 DRO & Collet Closer
Package Depth
0
Package Height
0
Package Weight
2336.0
Package Weight (lbs)
2336
Product Condition
New
Swing Over Bed
14.0
UL Listed
Yes
UPC
731325733594
Variable Speed
No
Voltage
230 Volts
Warranty Type
2 Years Limited
