JET 14 x 40 Lathe with Newall DP700 DRO & Taper Attachment
$21,19900
Out of Stock
+ $100 GIFT CARD w/ code at checkout
Qty
Secure Checkout
Affirm Pay over time with Affirm on orders below $17,500
Product Details

JET 14 x 40 Lathe with Newall DP700 DRO & Taper Attachment

JET JET

Description

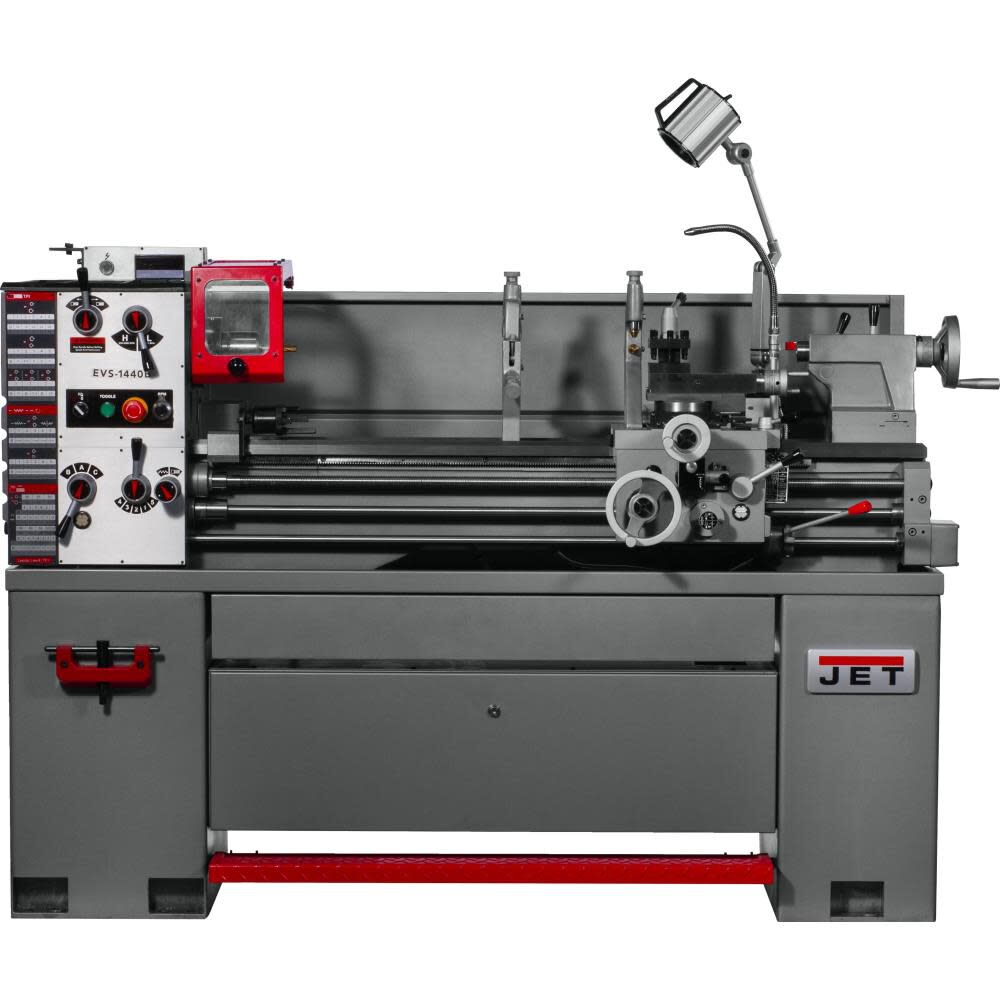

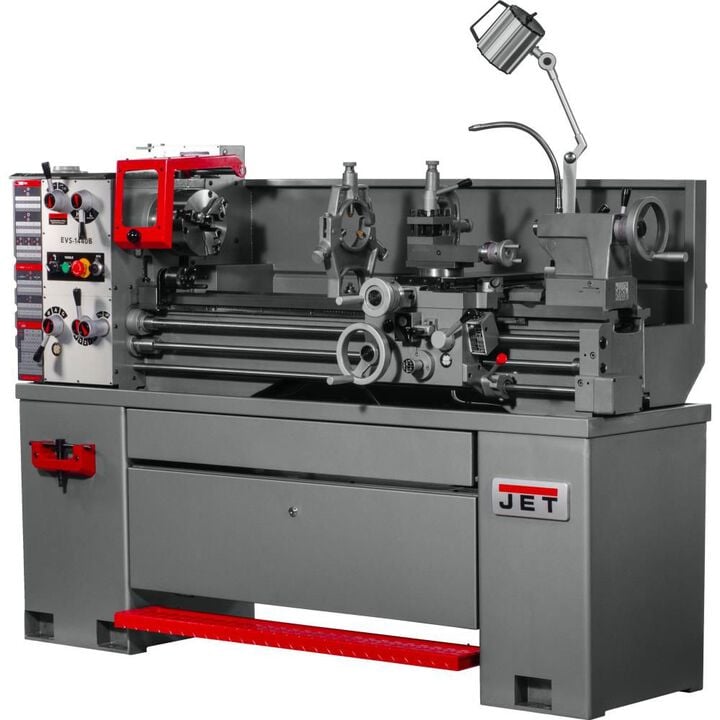

JET 14 x 40 Lathe with Newall DP700 DRO & Taper Attachment

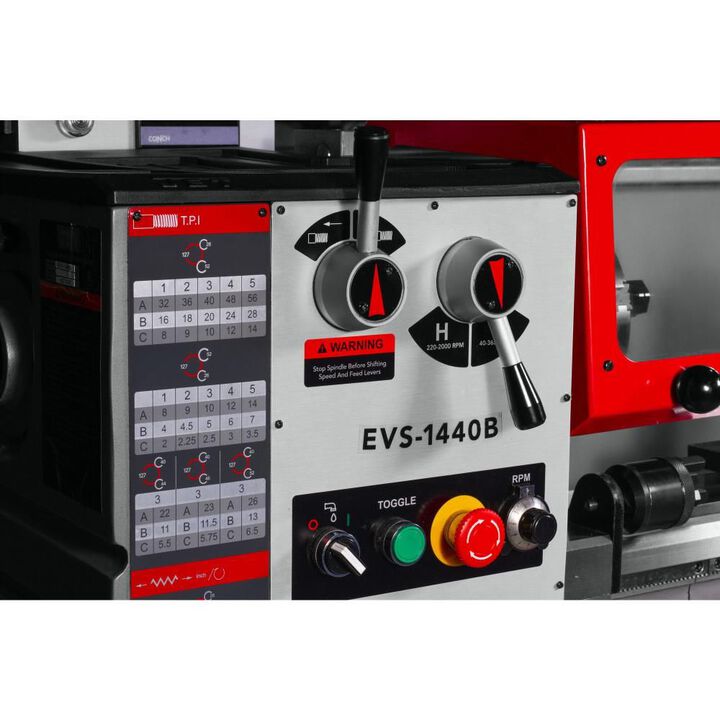

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004 In.. the 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPM's.

California Proposition 65 Warning.
View Warning Label

Features

V-way bed design is induction hardened and ground
Splined, not keyed, shafts are utilized
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Independent lead screw and feed rod
Adjustable gibs are incorporated in the carriage and slide ways
Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
Meehanite castings retain their tolerance and remain rigid through many years of machining
14 x 40 Electronic Variable Speed Lathe with Newall DP700 DRO and Taper Attachment, 3 HP, 230/460 V, 3Ph
Emergency stop within easy reach of the operator
Electronic chuck key docking station

Specifications

Brand Name
JET
Assembled Weight (lbs)
1320
California Proposition 65 Warning Required
Yes
Center To Center (in)
40
Color
Gray
Country of Origin
Taiwan
ETL Listed
No
Height (in)
50
Horsepower (hp)
3
MFG Part # (OEM)
311450J
Maximum Speed (rpm)
1800
Net Tool Weight (lbs)
1320
Package Contents
14 x 40 Lathe with Newall DP700 DRO & Taper Attachment
Package Depth
68.5
Package Height
50
Package Weight
1584
Package Weight (lbs)
1584
Product Condition
New
UL Listed
No
UPC
731325792034
Variable Speed
Yes
Voltage
230/460 Volts
Warranty Type
2 Years Limited
