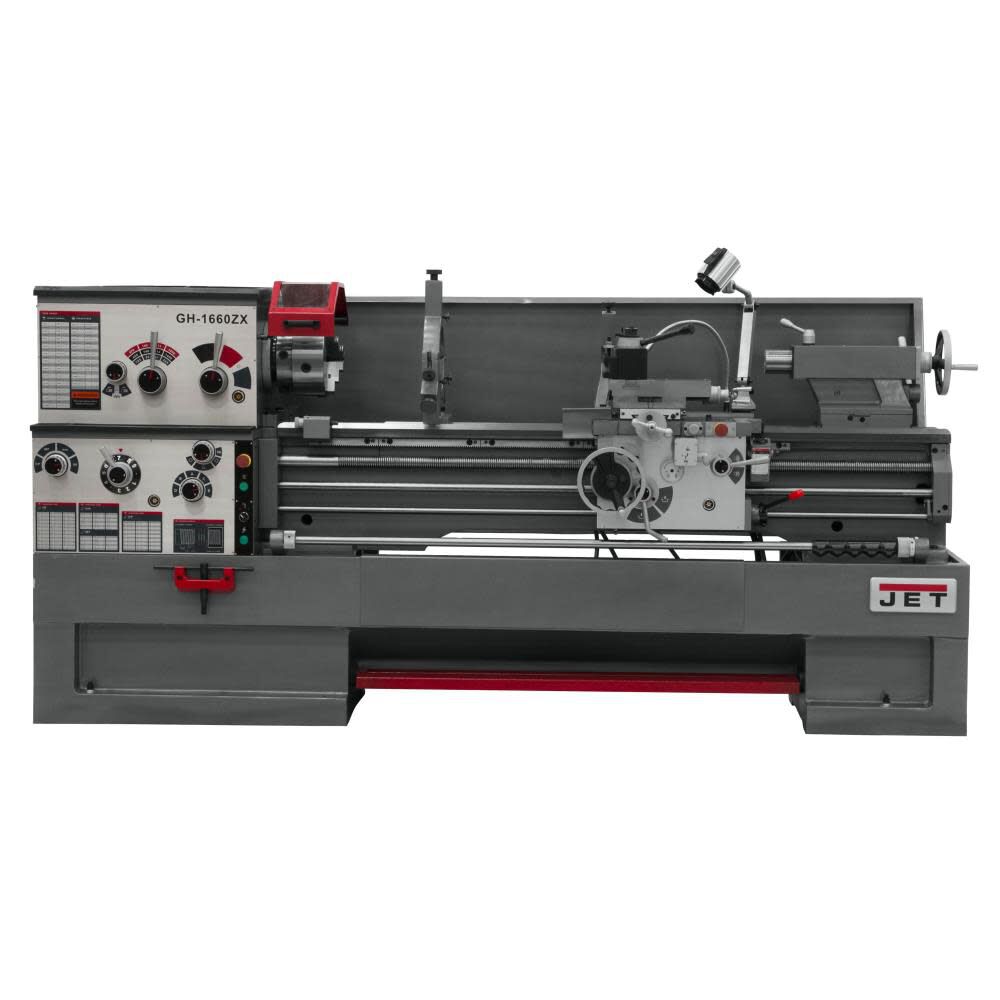

JET Gear Head 16 x 60 ZX 3-1/8 In. Spindle Bore Precision Lathe
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
16 In., 18 In. and 22 In. ZX series large spindle bore lathes
Uniquely designed exclusively by Jet
ISO 91 certified manufacturer
3-1/8 In. bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground, and shaved
Universal gearbox allows inch, metric, diametrical, and module pitch threads, no change gears required
Carriage feature one-shot lubrication and Turcite-B B on bed sliding surfaces
T-slotted compound slide featuring a four-way tool post
-
In Stock (Ships in 3-5 business days)
$27,79900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 7 - Fri Nov 8
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
JET Gear Head 16 x 60 ZX 3-1/8 In. Spindle Bore Precision Lathe
$27,79900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay over time with Affirm on orders below $17,500
Product Details
JET Gear Head 16 x 60 ZX 3-1/8 In. Spindle Bore Precision Lathe
JET
Description
JET Gear Head 16 x 60 ZX 3-1/8 In. Spindle Bore Precision Lathe
JET® extensive selection of turning machines allows the experts to choose the lathes they need to perform any turning operation. Precision manufactured to meet the demands of even the highest volume shop, JET® turning machines, taper attachments, collet closers, digital readouts and accessories are built to last. JET® machines are backed by an industry - best two year warranty, and come with superior customer support like professional manuals to ensure precise, accurate and efficient operation.
View Warning LabelFeatures
16 In., 18 In. and 22 In. ZX series large spindle bore lathes
Uniquely designed exclusively by Jet
ISO 91 certified manufacturer
3-1/8 In. bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground, and shaved
Universal gearbox allows inch, metric, diametrical, and module pitch threads, no change gears required
Carriage feature one-shot lubrication and Turcite-B B on bed sliding surfaces
T-slotted compound slide featuring a four-way tool post
Specifications
Brand Name
JET
Assembled Weight (lbs)
5999
California Proposition 65 Warning Required
Yes
Center To Center (in)
60
Country of Origin
China
CSA Certified
No
ETL Listed
No
Height (in)
66
Horsepower (hp)
7.5
Lock-on Switch
Yes
MFG Part # (OEM)
321940
Maximum Speed (rpm)
1800
Net Tool Weight (lbs)
0
Package Contents
Gear Head 16 x 60 ZX 3-1/8 In. Spindle Bore Precision Lathe
Package Depth
115.5
Package Height
66
Package Weight
5999
Phase
Three Phase
Product Condition
New
Spindle Bore Diameter
3.125
Stand Included
Yes
Swing Over Bed
16
Switch Type
Push Button
UL Listed
No
UPC
662755165078
Variable Speed
Yes
Voltage
230/460 Volts
Warranty Type
2 Years Limited
