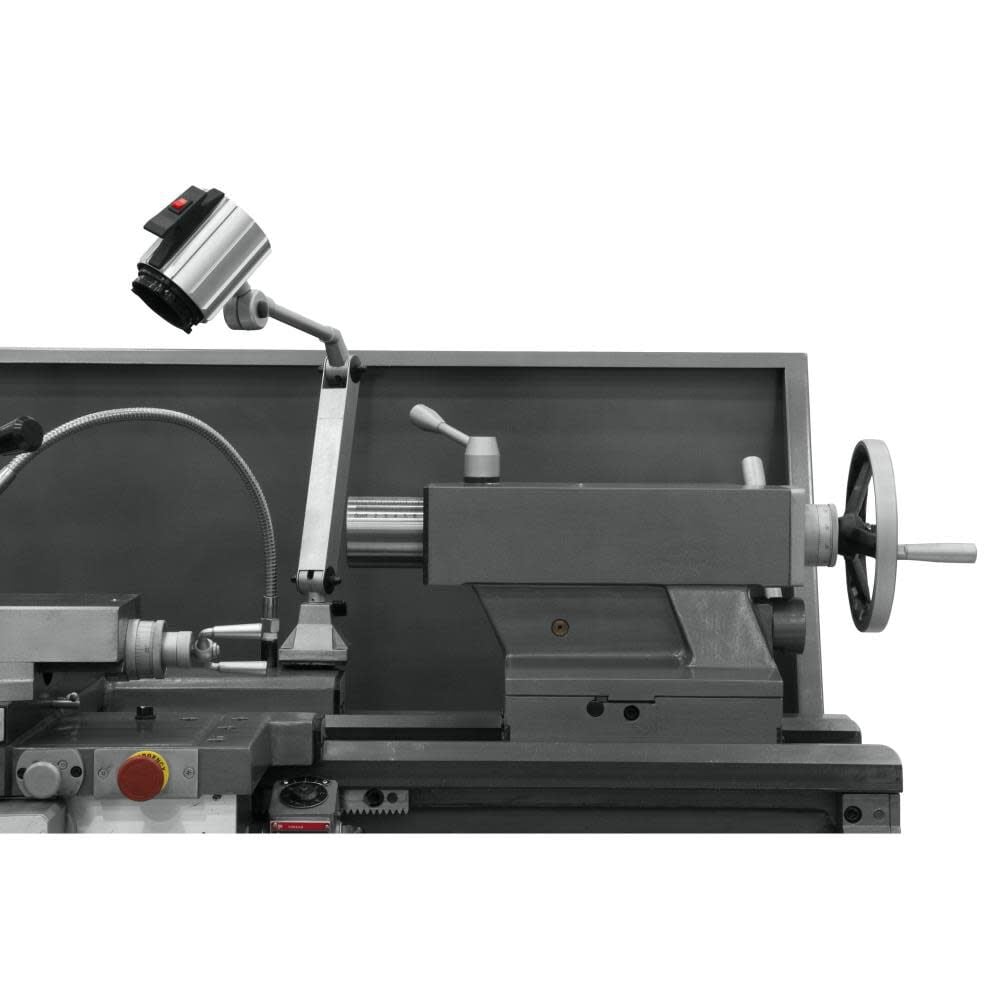

JET Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
JET Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
3-1/8” bore spindle is supported by two tapered and one ball bearings
Universal gearbox allows inch, metric, diametrical and module pitch threads, no change gears required
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI class 50 wear resistant cast iron bed ways are hardened and ground
Siemens electrics
Front removable chip tray
Safety holder for chuck key, chuck key must be in holder for lathe to operate
Large easy to use foot brake
Chrome molybdenum headstock gears are hardened, ground and shaved
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
-
In Stock (Ships in 3-5 business days)
$37,99900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 7 - Fri Nov 8
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
JET Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
$37,99900
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay over time with Affirm on orders below $17,500
Product Details
JET Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
JET
Description
JET Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
The ZX-Series large spindle bore lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. Features you've come to expect in a Jet lathe that is backed by the industry-leading Jet two year warranty.
View Warning LabelFeatures
3-1/8” bore spindle is supported by two tapered and one ball bearings
Universal gearbox allows inch, metric, diametrical and module pitch threads, no change gears required
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI class 50 wear resistant cast iron bed ways are hardened and ground
Siemens electrics
Front removable chip tray
Safety holder for chuck key, chuck key must be in holder for lathe to operate
Large easy to use foot brake
Chrome molybdenum headstock gears are hardened, ground and shaved
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
Specifications
Brand Name
JET
Assembled Weight (lbs)
6200.0
California Proposition 65 Warning Required
Yes
Center To Center (in)
60.0
Country of Origin
China
CSA Certified
No
ETL Listed
No
Height (in)
48.0
Horsepower (hp)
7.5
Lock-on Switch
Yes
MFG Part # (OEM)
321543
Maximum Speed (rpm)
1800.0
Net Tool Weight (lbs)
6200.0
Package Contents
Gear Head 16 x 60 ZX Lathe with 2-Axis ACU-RITE 203 & Taper Attachment Installed
Package Depth
116.5
Package Height
48
Package Weight
6400.0
Phase
Three Phase
Product Condition
New
Spindle Bore Diameter
0.0
Stand Included
Yes
Swing Over Bed
16
Switch Type
Push Button
UL Listed
No
UPC
662755510823
Variable Speed
Yes
Voltage
230/460 Volts
Warranty Type
2 Years Limited
