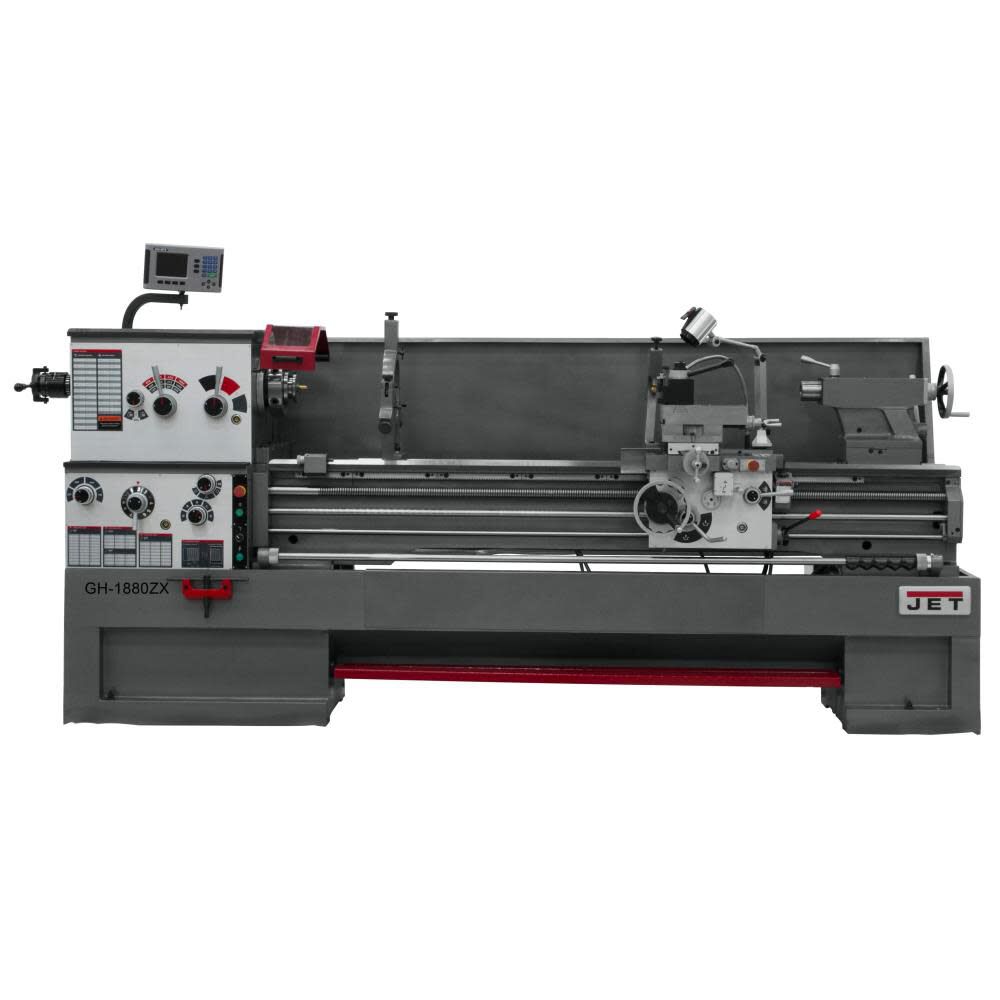

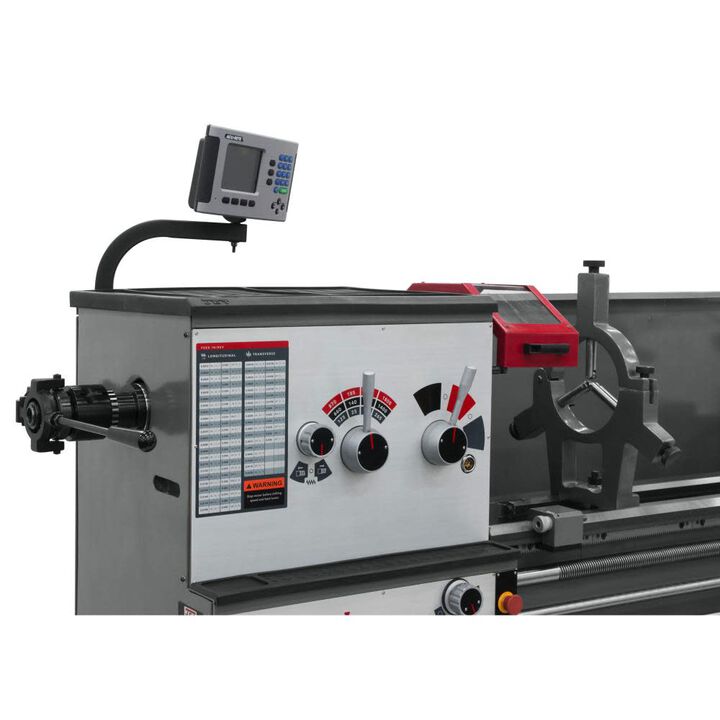

JET Gear Head 18 x 80 ZX Lathe with 2-Axis ACU-RITE DRO 203 Collet Closer and Taper Attachment Installed
Description
JET Gear Head 18 x 80 ZX Lathe with 2-Axis ACU-RITE DRO 203 Collet Closer and Taper Attachment Installed
JET®'s extensive selection of turning machines allows the experts to choose the lathes they need to perform any turning operation. Precision manufactured to meet the demands of even the highest volume shop, JET® turning machines, taper attachments, collet closers, digital readouts and accessories are built to last. JET® machines are backed by an industry - best two year warranty, and come with superior customer support like professional manuals to ensure precise, accurate and efficient operation.
View Warning LabelFeatures
Uniquely designed exclusively by Jet
ISO 91 certified manufacturer
3-1/8 bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground and shaved
Universal gearbox allows inch, metric, diametrical and module pitch threads, no change gears required
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
T-slotted compound slide featuring four-way tool post
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI class 50 wear resistant cast iron bed ways are hardened and ground
Removable gap allows up to 23-5/8 In. diameter work on 16 In., 27-1/2 In. on 18 In.
Specifications
Brand Name
JET
Assembled Weight (lbs)
6625
California Proposition 65 Warning Required
Yes
Center To Center (in)
80
Country of Origin
China
CSA Certified
No
ETL Listed
No
Height (in)
48.88
Horsepower (hp)
7.5
Lock-on Switch
Yes
MFG Part # (OEM)
321493
Maximum Speed (rpm)
61
Net Tool Weight (lbs)
0
Package Contents
Gear Head 18 x 80 ZX Lathe with 2-Axis ACU-RITE DRO 203 Collet Closer and Taper Attachment Installed
Package Depth
136
Package Height
48.88
Package Weight
6625
Phase
Three Phase
Product Condition
New
Spindle Bore Diameter
3.125
Stand Included
Yes
Swing Over Bed
18
Switch Type
Push Button
UL Listed
No
UPC
662755918285
Variable Speed
Yes
Voltage
230/460 Volts
Warranty Type
2 Years Limited
