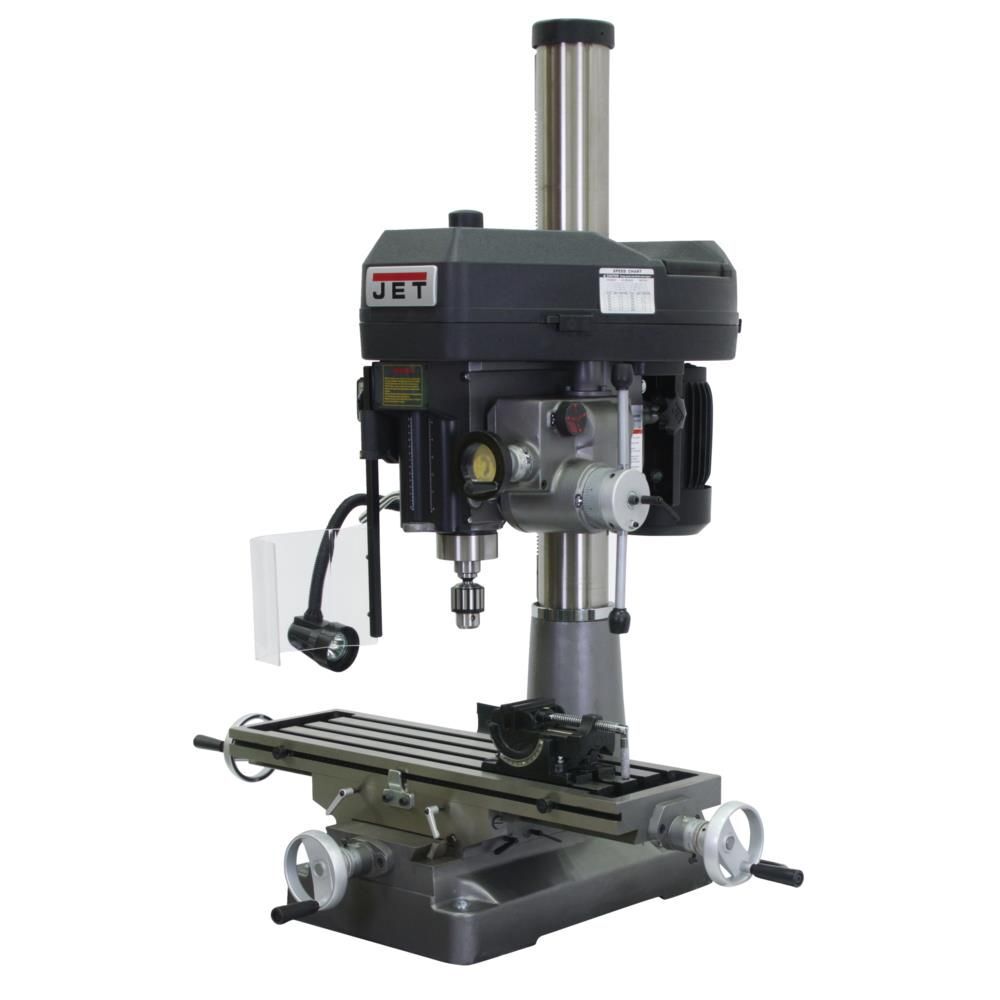

JET Mill/Drill with ACU-RITE 203 DRO and X-Axis Table Powerfeed
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
One piece cast iron column for added support
Belt cover quick slide latch allows faster belt adjustment to change spindle speeds
Base taper allows for easier clean-up
Larger hand wheel knobs
UL listed motor
Extra large work table
New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
360° Head swivel
Work lamp
Draw bar
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$8,41900
Out of Stock
Delivery to -
43215
- Est. Arrival
Fri Nov 15 - Fri Nov 22
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
JET Mill/Drill with ACU-RITE 203 DRO and X-Axis Table Powerfeed
$8,41900
Out of Stock
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
JET Mill/Drill with ACU-RITE 203 DRO and X-Axis Table Powerfeed
JET
Description
JET Mill/Drill with ACU-RITE 203 DRO and X-Axis Table Powerfeed
JET® milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET® step pulley, variable speed and CNC mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET® machine is backed by our industry-leading two-year warranty.
View Warning LabelFeatures
One piece cast iron column for added support
Belt cover quick slide latch allows faster belt adjustment to change spindle speeds
Base taper allows for easier clean-up
Larger hand wheel knobs
UL listed motor
Extra large work table
New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
360° Head swivel
Work lamp
Draw bar
Specifications
Brand Name
JET
Assembled Weight (lbs)
847
California Proposition 65 Warning Required
Yes
Capacity
400 Lbs
Chuck Design
Keyless
Color
Gray
Country of Origin
Taiwan
CSA Certified
No
ETL Listed
No
Head Tilt (Left Or Right)
180
Height (in)
43.5
Horsepower (hp)
2
MFG Part # (OEM)
350120
Material
Cast Iron
Package Contents
Mill/Drill with ACU-RITE 203 DRO and X-Axis Table Powerfeed
Package Depth
0
Package Height
0
Package Weight
847
Package Weight (lbs)
847
Product Condition
New
Quill Diameter
3
RPM
150 - 3000
Stand Included
No
Switch Type
Push Button
UL Listed
Yes
Unit of Measurement
Metric and Inch
UPC
662755518683
Variable Speed
Yes
Voltage
230 Volts
Warranty Type
2 Years Limited
Weight (lbs)
847
X Axis, Longitudinal (in)
24
Y Axis, Cross (in)
7
Z Axis, Knee (in)
0
