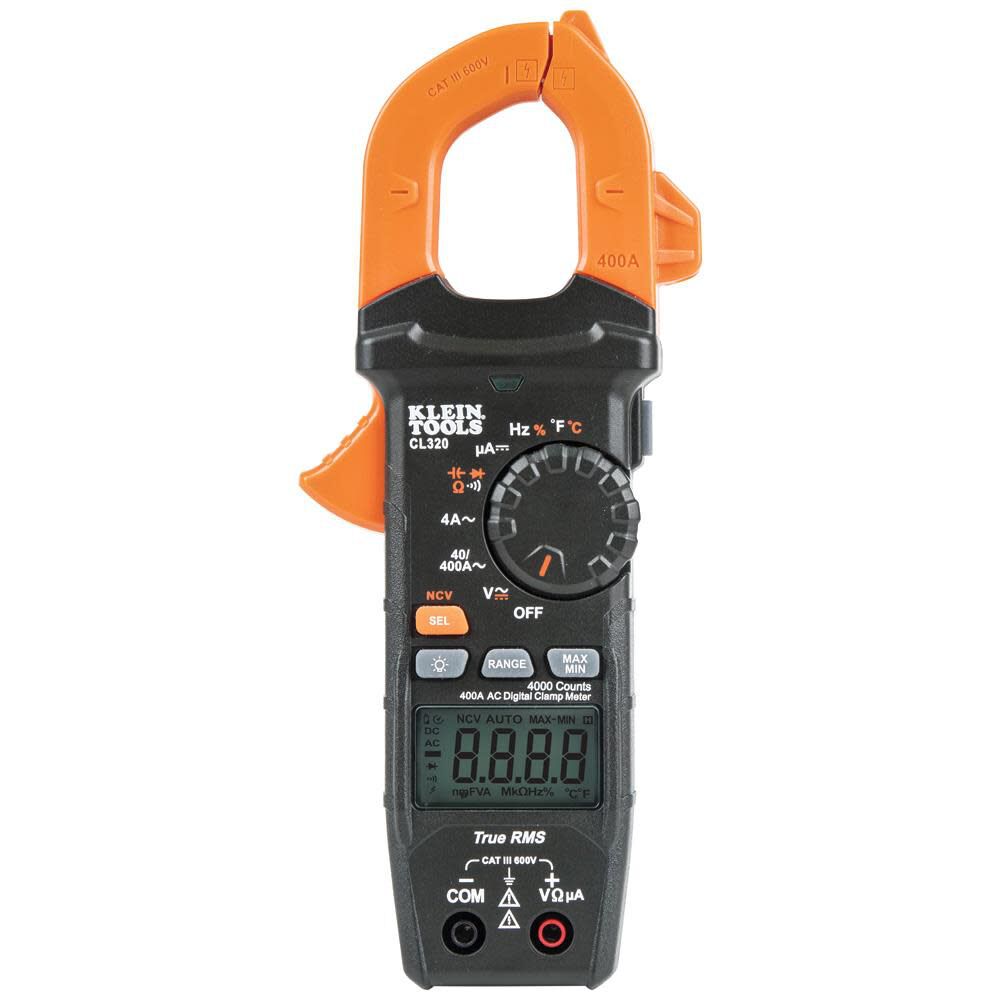

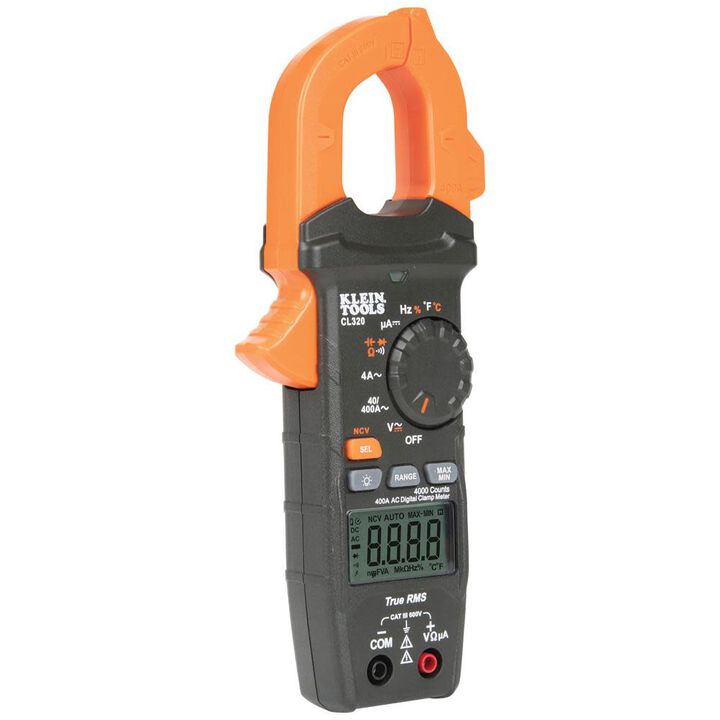

Klein Tools HVAC Digital Clamp Meter
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold, and Max/Min value
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
-
In Stock
$8499
Out of Stock
+
$25
GIFT CARD
w/ $199+ select order
Delivery to -
43215
- Get it as soon as Mon Nov 4th
Edit location
Made In USAKlein Tools HVAC Digital Clamp Meter
$8499
Out of Stock
+
$25
GIFT CARD
w/ $199+ select order
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay over time with
Product Details
Klein Tools HVAC Digital Clamp Meter
Klein Tools
Description
Klein Tools HVAC Digital Clamp Meter

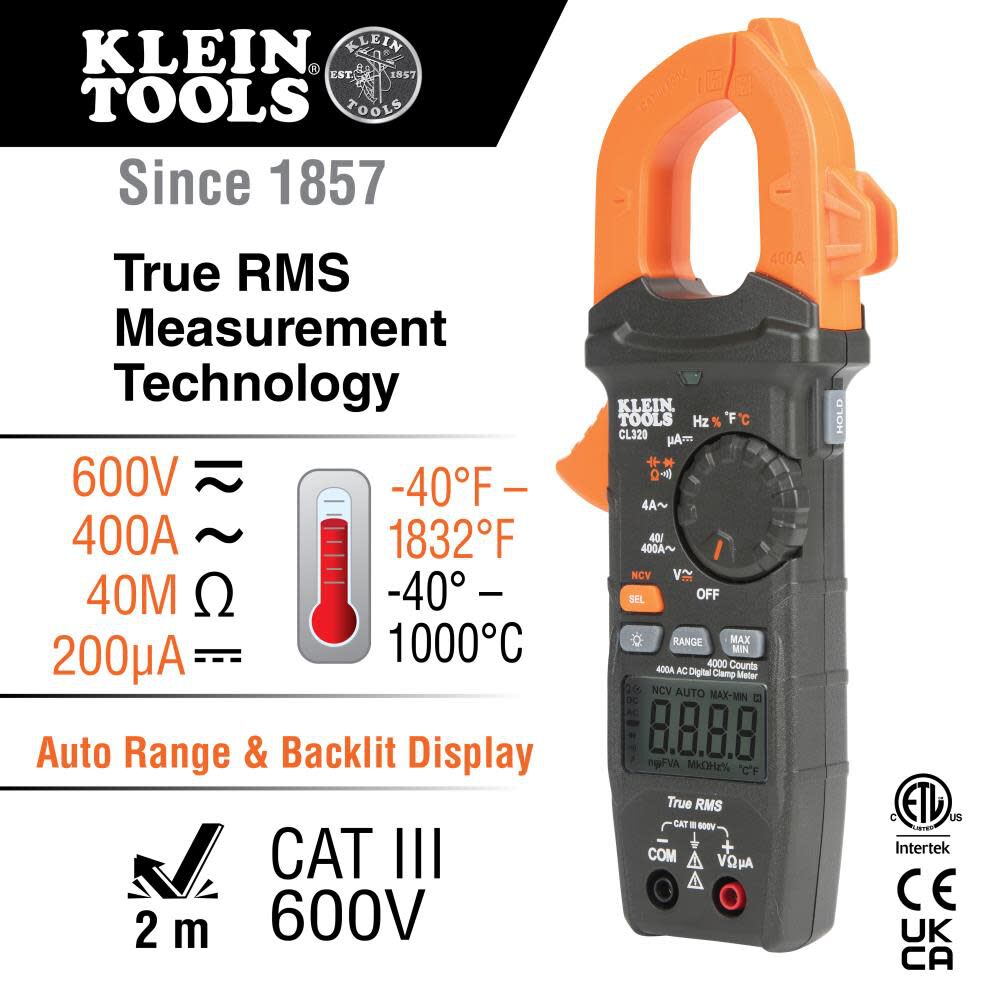

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
View Warning LabelFeatures
Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold, and Max/Min value
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Specifications
Brand Name
Klein Tools
Assembled Weight (lbs)
1.3
Battery Size
AAA
California Proposition 65 Warning Required
Yes
Color
Orange
Country of Origin
China
DC Polarity Indicator
Yes
DC Voltage
600
Digital / Analog
Digital
MFG Part # (OEM)
CL320
Material
ABS/Electronics
Number of Batteries Required
3
Package Contents
HVAC Digital Clamp Meter
Package Depth
8.45
Package Height
1.506
Package Weight
0.615
Package Weight (lbs)
1.3
Product Condition
New
Tester Type
Voltage
UPC
092644692864
Warranty Type
Limited
