Laguna Tools PX|22 SHEARTEC: II Planer 7.5HP 220V 1PH
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint.
ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

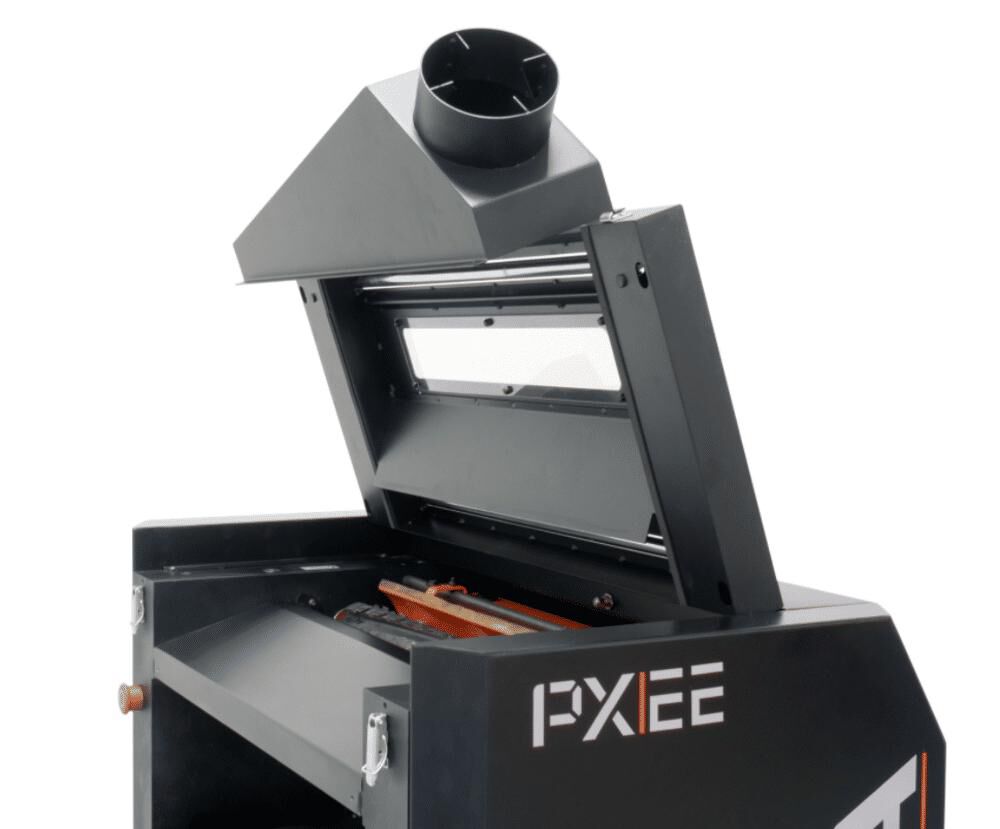

Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
4-Post Bed Support - Provides precise and consistent performance with every cut
Digital Readout - The DRO makes setting precise thickness easier
-
In Stock (Ships in 3-5 business days)
$5,84910
Was:
$7,999.00
Save 26%
Out of Stock
Delivery to -
43215
- Est. Arrival
Wed Nov 6 - Thu Nov 7
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
Laguna Tools PX|22 SHEARTEC: II Planer 7.5HP 220V 1PH
$5,84910
Was:
$7,999.00
Save 26%
Out of Stock
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
Laguna Tools PX|22 SHEARTEC: II Planer 7.5HP 220V 1PH
Laguna Tools
Description
Laguna Tools PX|22 SHEARTEC: II Planer 7.5HP 220V 1PH
The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 has segmented infeed rollers that allow multiple boards to be fed through and also electronic variable speed which allows users to speed up for more thickness or slow down for more cuts per inch. It also has an Ergonomic control panel where the controls are at the top of the machine for easier access and visibility. The PX|22 also comes with either a 7.5 HP Single Phase or a 10HP 3 Phase motor.
Features
Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint.
ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
4-Post Bed Support - Provides precise and consistent performance with every cut
Digital Readout - The DRO makes setting precise thickness easier
Specifications
Brand Name
Laguna Tools
Assembled Depth (in)
40
Assembled Weight (lbs)
867
Assembled Width (in)
46
California Proposition 65 Warning Required
Yes
Country of Origin
China
Height (in)
42
Horsepower (hp)
7.5
MFG Part # (OEM)
MPLANPX2275-0130
Maximum Width Cutting Capacity (in)
22 in
Package Contents
1 PX|22 SHEARTEC: II 7.5 HP 1 PH Planer
Package Depth
44
Package Height
48.5
Package Weight
955
Product Condition
New
UPC
195444075520
Warranty Type
2 Years
