Product Details

Petzl Auxiliary Friction Brake for ZIGZAG & ZIGZAG PLUS Mechanical Prusiks for Stationary Rope Systems

Petzl Petzl

Description

Petzl Auxiliary Friction Brake for ZIGZAG & ZIGZAG PLUS Mechanical Prusiks for Stationary Rope Systems

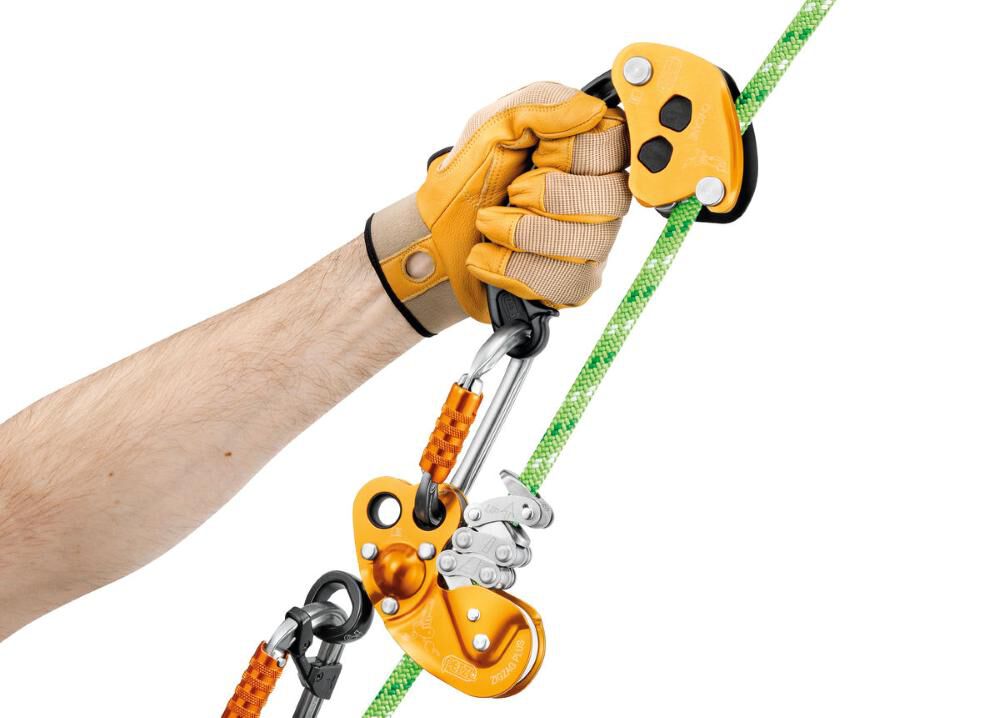

The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy. Specifications: Material(s): aluminum, steel, nylon. Weight: 255 g. Min. rope diameter: 11.5 mm. Max. rope diameter: 13 mm. Rope compatibility: EN 1891 type A low stretch kernmantel ropes. Working load limit: 140 kg. Certification(s): CE, UKCA.

California Proposition 65 Warning.

Features

Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes: continuous additional braking action, thanks to the added friction of the two friction pins & ergonomic handle facilitates movement while limb walking
Easy installation: Openable side plate for quick and easy installation on the rope & triple action unlocking limits rick of accidentally opening the side plate
Optimized durability, thanks to the two friction pins, available as spare parts
CHICANE allows the user to work in compliance with the ANSI Z133 standard
Specifications Material(s): aluminum, steel, nylon Weight: 255 g Min. rope diameter: 11,5 mm Max. rope diameter: 13 mm Rope compatibility: EN 1891 type A low stretch kernmantel ropes Working load limit: 140 kg Certification(s): CE, UKCA

Specifications

Brand Name
Petzl
Assembled Weight (lbs)
1
California Proposition 65 Warning Required
Yes
Country of Origin
France
MFG Part # (OEM)
D022CA00
Package Contents
Auxiliary Friction Brake
Package Depth
6
Package Height
2
Package Weight
1
Product Condition
New
UPC
404022000220
Warranty Type
3 Years
Weight Capacity (lbs)
308
