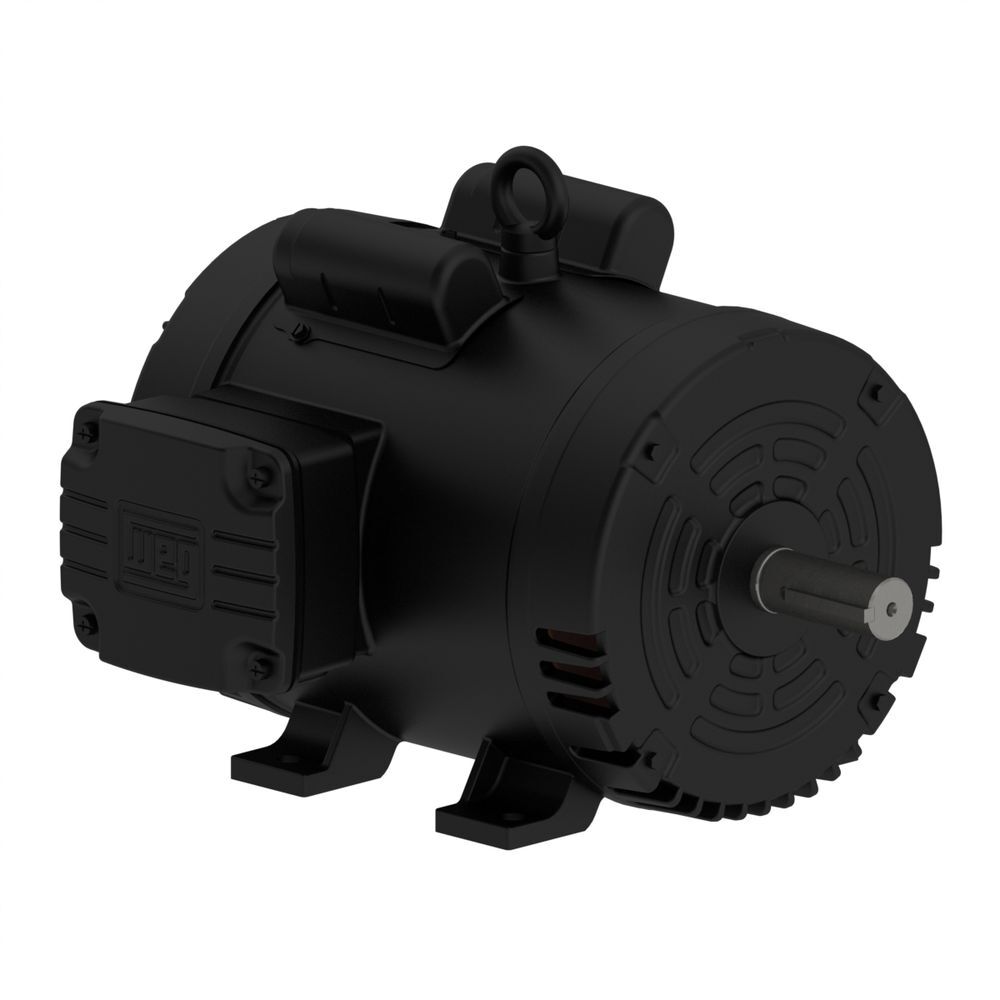

WEG 208-230V 3HP 1750 Rpm Definite Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 208-230V, 16/18.6-17.5A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 184T, 4 poles
Service Factor: 1.15 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$93399
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
WEG 208-230V 3HP 1750 Rpm Definite Purpose Compressor Electric Motor
$93399
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 208-230V 3HP 1750 Rpm Definite Purpose Compressor Electric Motor
WEG
Description
WEG 208-230V 3HP 1750 Rpm Definite Purpose Compressor Electric Motor
WEG 208-230 V 4 Poles 1750 Rpm open drip proof enclosure compressor motor with manual overload & reset. This electric motor is used by many other brands of air compressors and ROLAIR models 095K18, 3230K24, 3230K24CS compressors.
Features
Electrical Ratings: 208-230V, 16/18.6-17.5A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 184T, 4 poles
Service Factor: 1.15 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
106
Compatibility
For Models 095K18, 3230K24, 3230K24CS Compressors
Country of Origin
Mexico
Horsepower (hp)
3
MFG Part # (OEM)
MTRE101
Material
Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft, Plastic Fan
Maximum RPM
1750
Package Contents
Compressor Motor
Package Depth
15.55
Package Height
11.45
Package Weight
106
Phase
Single Phase
Product Condition
New
Size
15.5 Length x 10.748 Width x 11.457 In. Height, 1.125 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000003122
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
