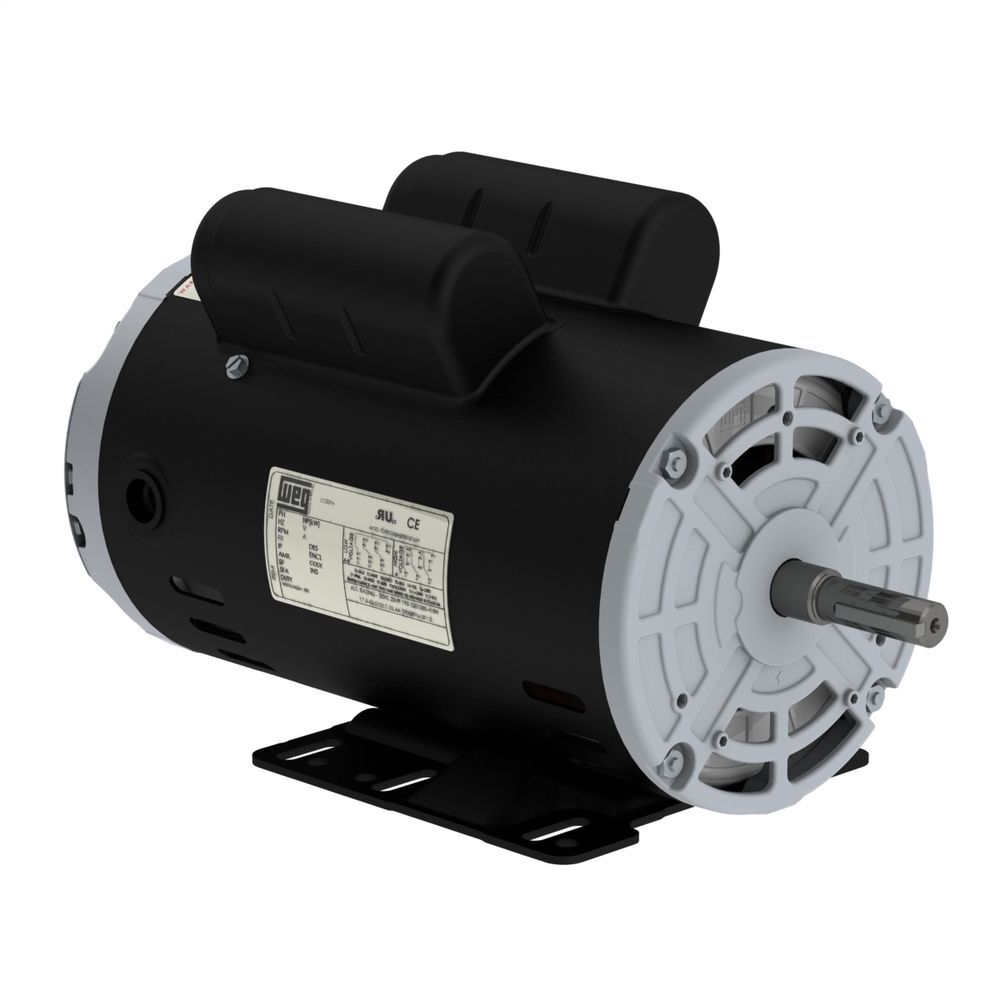

WEG 208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 208-230V, 16/13.7-12.7A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 56H, 2 poles
Service Factor: 1 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
2 Poles
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$56999
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
WEG 208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor
$56999
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor
WEG
Description
WEG 208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor
WEG 230/460V 2 Poles 3480 Rpm open drip proof enclosure compressor motor with manual overload & reset. This electric motor is used by many other brands of air compressor as well as ROLAIR models H3130K18, H3160K18, V3130K18, V3160K18 compressors.
Features
Electrical Ratings: 208-230V, 16/13.7-12.7A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 56H, 2 poles
Service Factor: 1 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
2 Poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
8.15
Compatibility
For Models H3130K18, H3160K18, V3130K18, V3160K18 Compressors
Country of Origin
Brazil
Horsepower (hp)
3
MFG Part # (OEM)
MTRE103
Material
Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM
3480
Package Contents
Compressor Motor
Package Depth
12.67
Package Height
8.15
Package Weight
8.15
Phase
Single Phase
Product Condition
New
Size
12.67 Length x 6.535 Width x 8.15 In. Height, 0.625 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000008509
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
