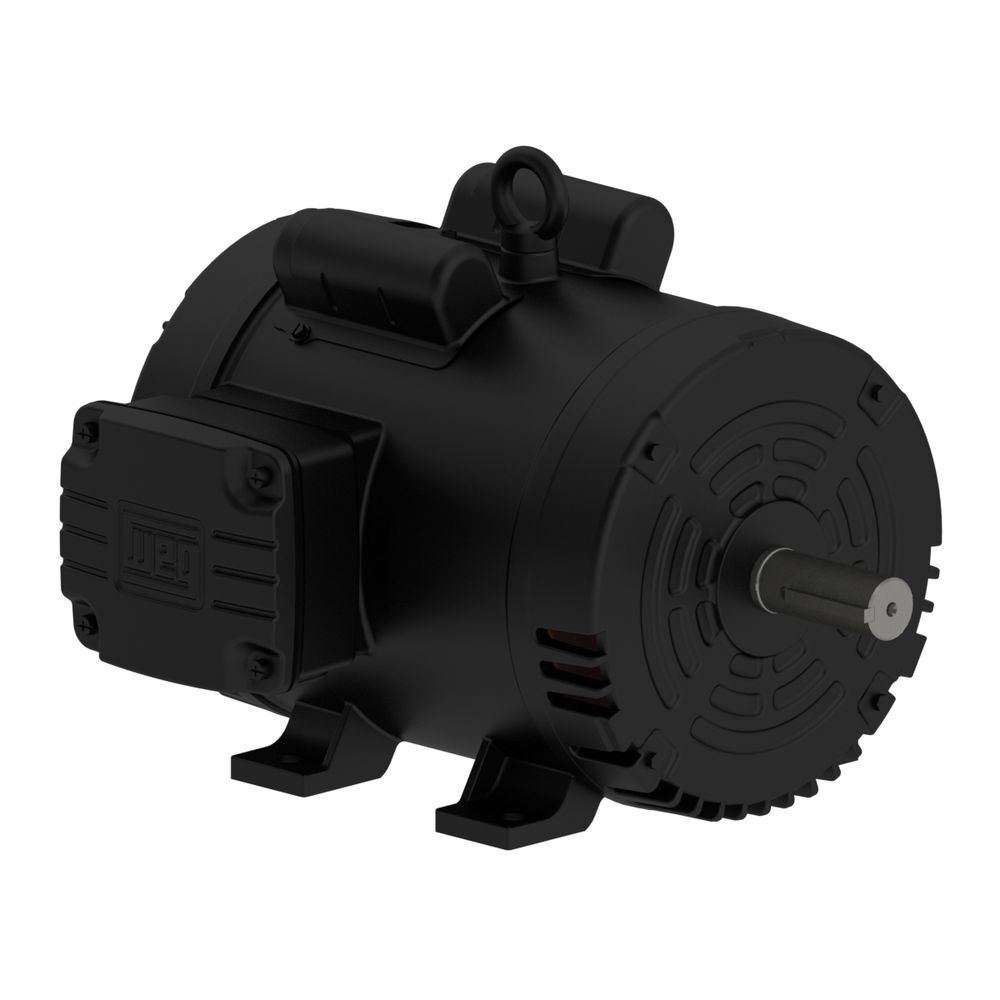

WEG 208-230V 5HP 1750 Rpm Definite Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 208-230V, 23-20.7A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 184T, 4 poles
Service Factor: 1.25 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
-
In Stock
$91899
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Get it as soon as Mon Nov 4th
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
WEG 208-230V 5HP 1750 Rpm Definite Purpose Compressor Electric Motor
$91899
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 208-230V 5HP 1750 Rpm Definite Purpose Compressor Electric Motor
WEG
Description
WEG 208-230V 5HP 1750 Rpm Definite Purpose Compressor Electric Motor
WEG 208-230 4 Poles 1725 Rpm open drip proof enclosure compressor motor. This electric motor is used by many other brands of air compressors as well as ROLAIR models H5160K28, V5160K28, V5180K28, H5130K30, H5160K30, V5160K30, H5112K30, V5112K30, H5130K30H, H5160K30H, H5180K30, V5180K30 compressors.
Features
Electrical Ratings: 208-230V, 23-20.7A, 60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 184T, 4 poles
Service Factor: 1.25 (1.00 @ 208V)
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
95.7
Compatibility
For Models H5160K28, V5160K28, V5180K28, H5130K30, H5160K30, V5160K30, H5112K30, V5112K30, H5130K30H, H5160K30H, H5180K30, V5180K30 Compressors
Country of Origin
Mexico
Horsepower (hp)
5
MFG Part # (OEM)
MTRG104
Material
Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft, Nylon Fan
Maximum RPM
1750
Package Contents
Compressor Motor
Package Depth
14.87
Package Height
11.25
Package Weight
95.7
Phase
Single Phase
Product Condition
New
Size
14.875 Length x 12.12 Width x 11.25 In. Height, 1.125 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000003252
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
