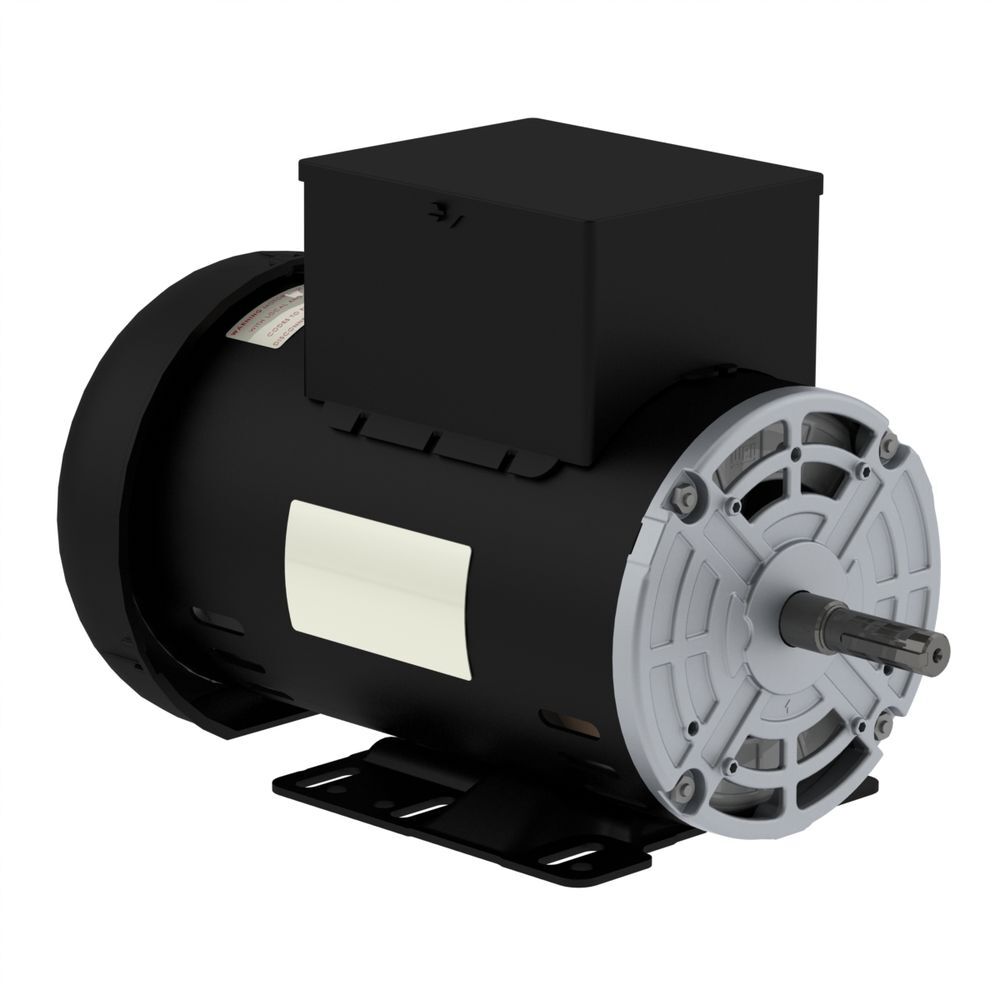

WEG 208-230V 5HP 3440 Rpm Definite Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 208-230V, 20.3A, 60 Hz
Mounting: F-3 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 56HZ, 2 poles
Service Factor: 1
Rotation: Both clockwise & counter clock wise
Terminal Box: Top, 2 poles
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$59999
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
WEG 208-230V 5HP 3440 Rpm Definite Purpose Compressor Electric Motor
$59999
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 208-230V 5HP 3440 Rpm Definite Purpose Compressor Electric Motor
WEG
Description
WEG 208-230V 5HP 3440 Rpm Definite Purpose Compressor Electric Motor
WEG 208-230 2 Poles 3400 Rpm open drip proof enclosure compressor motor with manual overload & reset. This electric motor is used by many other brands of air compressors and ROLAIR models H3330K18, H3330K24, H3360K18, H3360K24, V3330K17, V3330K18, V3360K18, V3360K24, V3380K24 compressors.
Features
Electrical Ratings: 208-230V, 20.3A, 60 Hz
Mounting: F-3 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 56HZ, 2 poles
Service Factor: 1
Rotation: Both clockwise & counter clock wise
Terminal Box: Top, 2 poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
49.6
Compatibility
For H5130K24, H5160K24, V5160K24, V5180K24, V5160PT03X Compressors
Country of Origin
Brazil
Horsepower (hp)
5
MFG Part # (OEM)
MTRG102
Material
Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft, Plastic Fan
Maximum RPM
3440
Package Contents
Compressor Motor
Package Depth
15.45
Package Height
9.25
Package Weight
49.6
Phase
Single Phase
Product Condition
New
Size
15.459 Length x 7.638 Width x 9.252 In. Height, 0.875 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000001197
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
