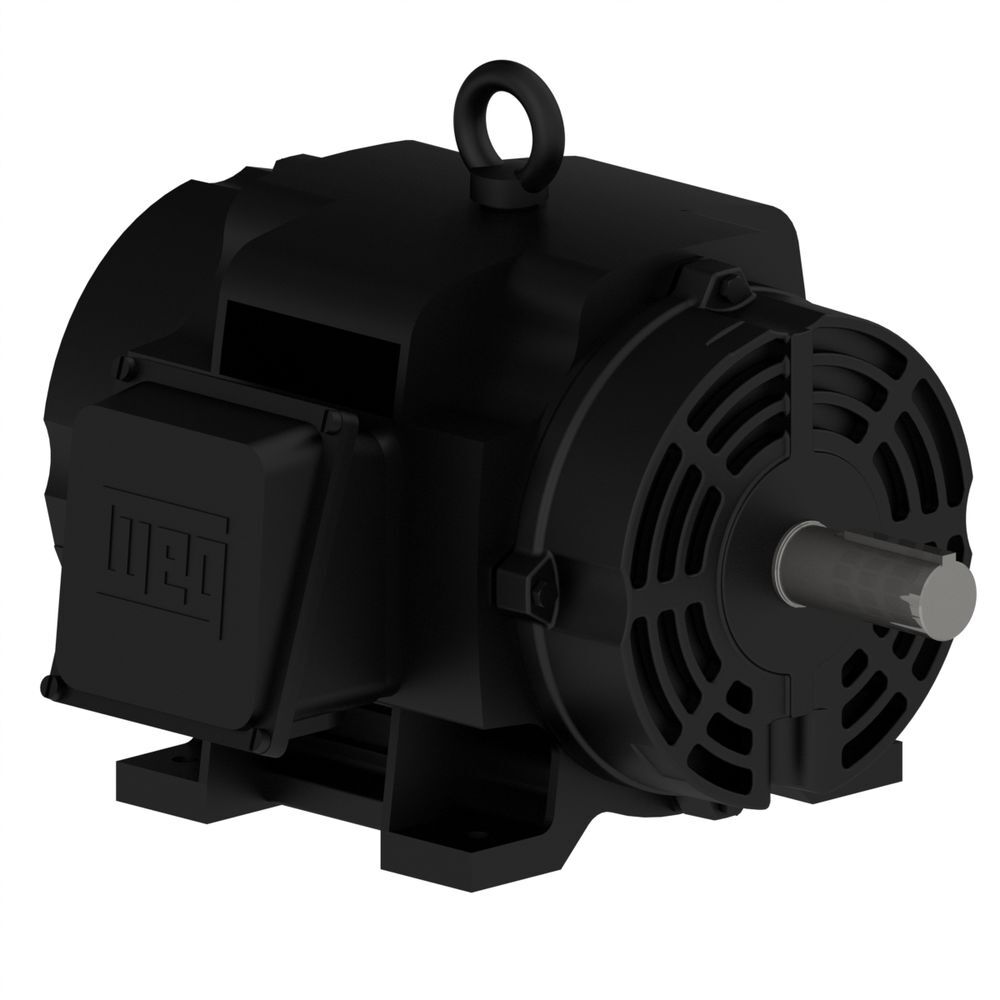

WEG 230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 230/460V, 41.1-37.2/18.6A, 50/60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 254T, 4 poles
Service Factor: 1.15
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$1,86799
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Freight
(Truck freight shipping to lower 48)
Lift Gate Service
(freight lowered to ground)
WEG 230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor
$1,86799
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor
WEG
Description
WEG 230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor
The WEG W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
Features
Electrical Ratings: 230/460V, 41.1-37.2/18.6A, 50/60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 254T, 4 poles
Service Factor: 1.15
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
243
Compatibility
For Models H15312K60, H15320K60, H15312K100, H15320K100 Compressors
Country of Origin
Brazil
Horsepower (hp)
15
MFG Part # (OEM)
MTRK301/EISA
Material
Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM
1775
Package Contents
Compressor Motor
Package Depth
20.66
Package Height
14.36
Package Weight
243
Phase
Three Phase
Product Condition
New
Size
20.669 Length x 16.144 Width x 14.369 In. Height, 1.625 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000003474
Voltage
230/460
Warranty Type
No Manufacturer's Warranty
