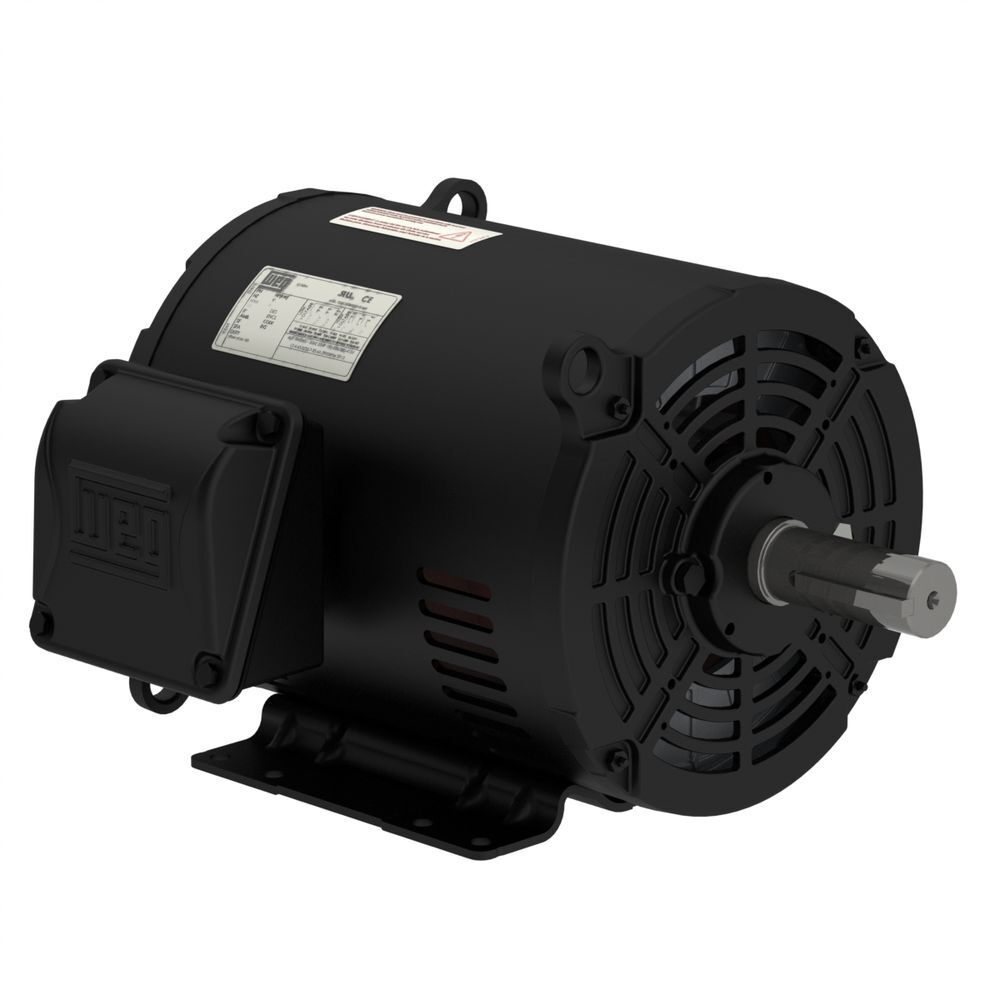

WEG 230-460V 3HP 1765 Rpm General Purpose Compressor Electric Motor
VIEW IN AR
SCAN THE QR CODE TO VIEW THIS ITEM IN YOUR SPACE
INTERACT WITH 3D VIEW
Product Features
Electrical Ratings: 230/460V, 7.72A/8.26A, 50/60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 182/4T, 4 poles
Service Factor: 1.15
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
-
Available to Order ✖This is an estimate only.
You will receive an email notifying you if this shipping date changes.
$89699
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Delivery to -
43215
- Est. Arrival
Thu Nov 14 - Thu Nov 21
Edit location
Made In USA
Free Shipping (Ground shipping to lower 48)
WEG 230-460V 3HP 1765 Rpm General Purpose Compressor Electric Motor
$89699
Out of Stock
+
$100
GIFT CARD
w/ code at checkout
Qty
(Max. order of 1,000)
Secure Checkout
Selected Store
Pay as low as
Product Details
WEG 230-460V 3HP 1765 Rpm General Purpose Compressor Electric Motor
WEG
Description
WEG 230-460V 3HP 1765 Rpm General Purpose Compressor Electric Motor
The WEG W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.
Features
Electrical Ratings: 230/460V, 7.72A/8.26A, 50/60 Hz
Mounting: F-1 Foot-mounted
Without flange
Standard: NEMA MG-1
Enclosure: Open Drip Proof (ODP)
Duty Cycle: Continuous (S1)
Frame: 182/4T, 4 poles
Service Factor: 1.15
Rotation: Both clockwise & counter clock wise
Terminal Box: Left position, 4 poles
Specifications
Brand Name
WEG
Assembled Weight (lbs)
65.9
Compatibility
For Models H3330K18, H3330K24, H3360K18, H3360K24, V3330K17, V3330K18, V3360K18, V3360K24, V3380K24 Compressors
Country of Origin
Mexico
Horsepower (hp)
3
MFG Part # (OEM)
MTRE303/EISA
Material
Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM
1765
Package Contents
Compressor Motor
Package Depth
15.15
Package Height
8.54
Package Weight
65.9
Phase
Three Phase
Product Condition
New
Size
15.157 Length x 11.3 Width x 8.543 In. Height, 1.125 In. Shaft Size
Temperature Range
-20 to 40 Deg C
UPC
413000003214
Voltage
230/460
Warranty Type
No Manufacturer's Warranty
